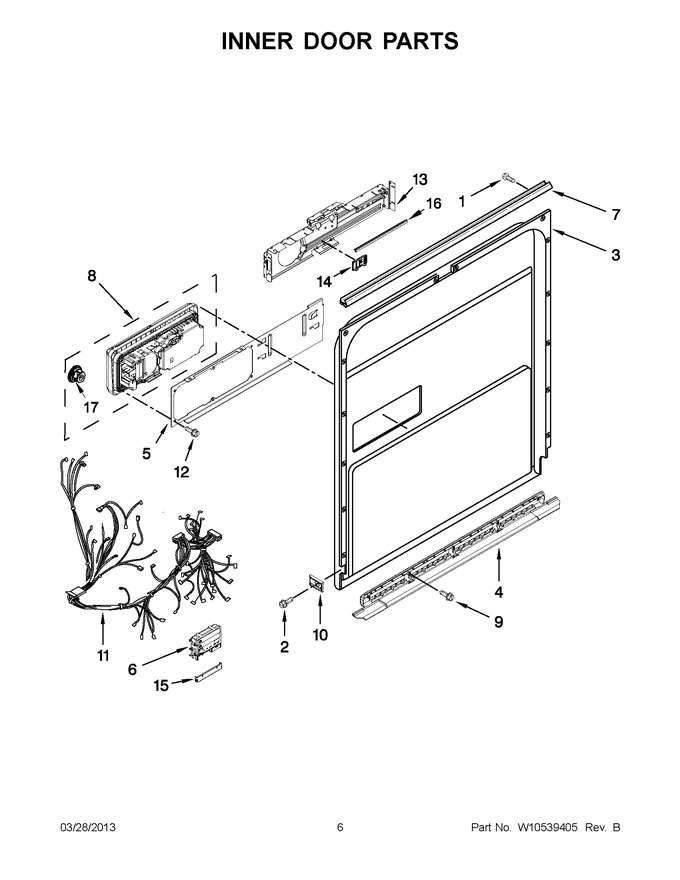

03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: W10348409)			Immediately	$ 8.20
2	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 8.26
3	WPW10380376		Inner Door Mastic Assembly   (Replaces: W10380376)				$ 384.02
4	WPW10497235		Seal, Door Bottom   (Replaces: W10497235)			Immediately	$ 10.70
5	W10388224		Bracket, Dispenser		Appelez-nous	-
6	W10372577		Ecm, Smart Grid		Appelez-nous	-
7	WPW10195007		Seal, Console/door   (Replaces: W10195007)				$ 166.86
8	W11032769		Dispenser, Assembly   (Replaces: W10304410)			Immediately	$ 173.16
9	W11631670		Screw   (Replaces: 8281217)				$ 14.72
10	W10195837		Barrier, Vapor				$ 30.01
11	W10373885		Wiring Harness (includes Rear Tub Antenna & Current Transformer)		Appelez-nous	-
12	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
13	WPW10350242		Bracket, Control   (Replaces: W10350242)				$ 88.32
14	W10463662		Spacer, Control Bracket Panel				$ 49.41
15	W10421388		Cover, Ecm Connector		Appelez-nous	-
16	W10461527		Seal, Control Bracket		Appelez-nous	-
17	WPW10524911		Cap, Rinse Aid   (Replaces: W10524911)				$ 30.20
