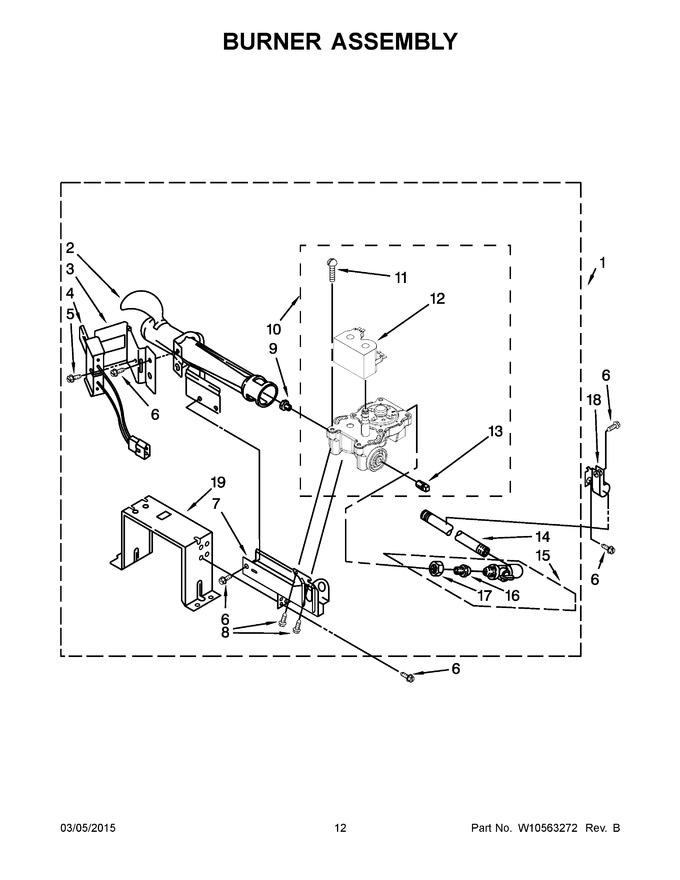

07 - Burner Assembly


08 - Dryer Door Parts


09 - Washer Door Parts


10 - Washer Cabinet Parts


11 - Dispenser Parts


12 - Tub And Basket Parts


13 - Pump And Motor Parts


14 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11676916		Burner Assembly (60 Hz)   (Replaces: W10135231)				$ 284.80
2	WP693140		Tube, Burner   (Replaces: 688617)				$ 188.87
3	WP694298		Bracket, Ignitor   (Replaces: 694298)				$ 27.22
4	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
5	WPW10366705		Screw   (Replaces: 3393909)				$ 7.88
6	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
7	3389871		Base, Burner				$ 83.25
8	WP693995		Screw   (Replaces: 3387057)			Immediately	$ 7.55
9	234870		Orifice, Burner (type 1 (natural))				$ 129.29
10	WPW10141728		Valve, Gas (60 Hz - Complete)   (Replaces: W10141728)				$ 359.75
12	WPW10328463		Coil (60 Hz)   (Replaces: W10328463)			Immediately	$ 79.02
13	W10295523		Pipe Plug		Appelez-nous	-
14	W10110395		Pipe, Gas Supply		Appelez-nous	-
15	697441		Valve, Gas		Appelez-nous	-
16	3393767		Pipe, Tail				$ 144.63
17	233076		Nut, Compression				$ 43.19
18	3387561		Clamp, Pipe		Appelez-nous	-
19	3389888		Bracket, Support   (Replaces: 3389889)		Appelez-nous	-
9A	WP234868		Orifice, Burner (type 4 (propane))   (Replaces: 234868)				$ 36.59
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10436933		Conversion Kit (type 1 And 2) To Type L.p.g.				$ 63.27
