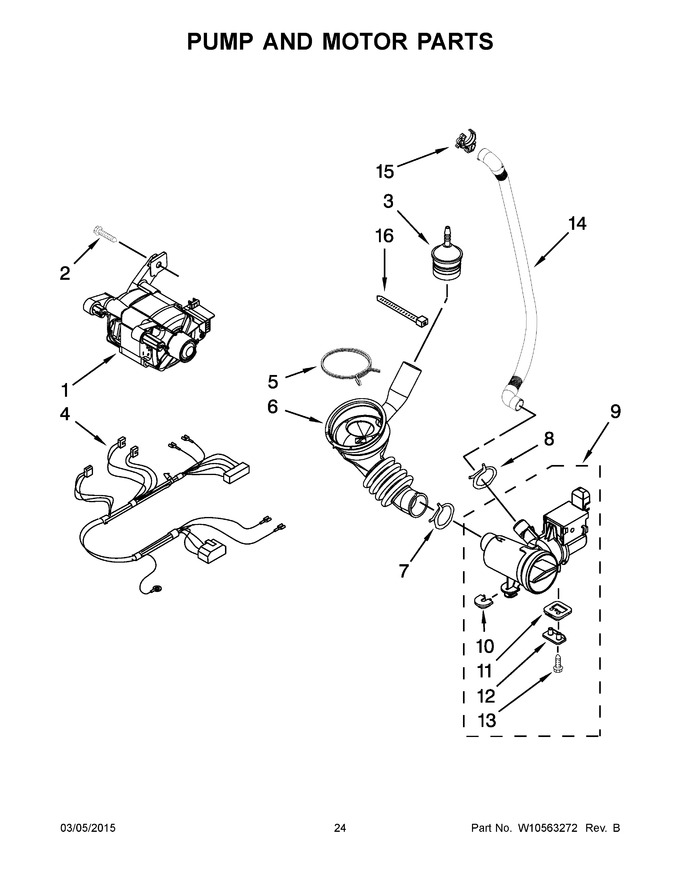

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11191299		Motor, Drive   (Replaces: W10171927)				$ 456.72
2	8540134		Bolt, Motor				$ 14.12
3	WPW10405608		Trap, Air   (Replaces: W10405608)			Immediately	$ 7.91
4	WPW10201879		Harness, Motor   (Replaces: W10201879)				$ 169.87
5	WP696392		Clamp, Hose   (Replaces: 8181734)				$ 9.08
6	W11366249		Hose, Tub To Pump   (Replaces: 8540012)			Immediately	$ 51.94
7	WP616099		Clamp, Hose   (Replaces: 370448)			Immediately	$ 8.58
8	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
9	WPW10730972		Pump (complete)   (Replaces: W10130913)			Immediately	$ 177.38
10	W10034820		Foot, Rubber (slider)				$ 13.43
11	W10034830		Foot, Rubber (lock)		Appelez-nous	-
12	8540033		Cap, Lock Foot				$ 18.88
13	8533964		Screw, Ventilation				$ 12.60
14	WPW10272563		Hose, Drain Inner   (Replaces: W10272563)				$ 30.71
15	8182209		Retainer, Drain Hose   (Replaces: W10003290)				$ 21.60
16	WP2262071		Tie, Cable   (Replaces: 2262071)				$ 9.24
