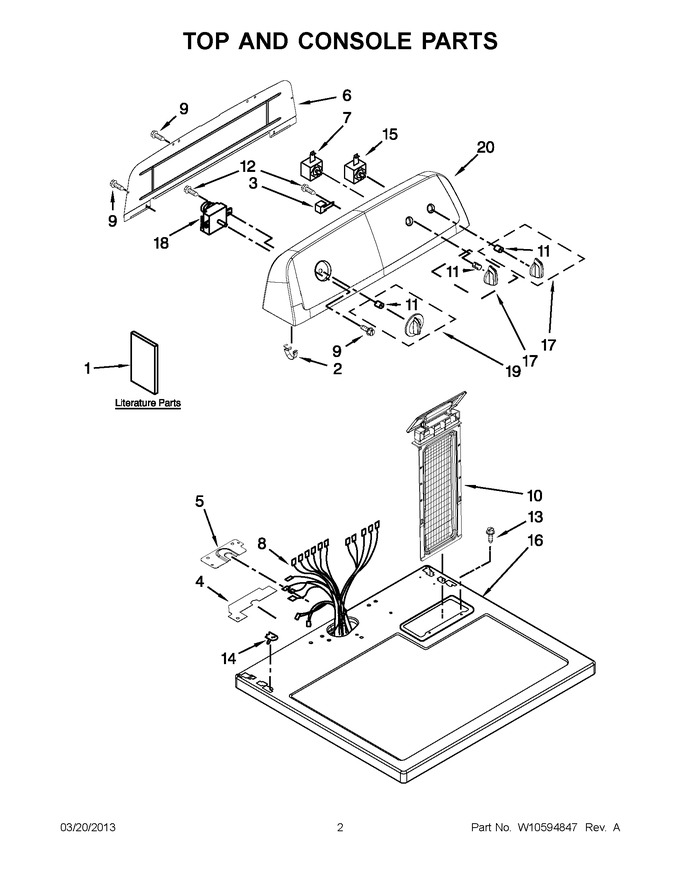

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10514172 | Installation Instructions |
|
- | |||||
| 1 | W10096991 | Use & Care Guide |
|
- | |||||
| 1 | W10185985 | Wiring Diagram |
|
- | |||||
| 2 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 127.67 | |||||
| 4 | W10112603 | Seal-harness |
|
- | |||||
| 5 | W10112578 | Bracket-harness |
|
- | |||||
| 6 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 126.09 | |||||
| 7 | W11661755 | Switch, Rotary (Replaces: W10420747) |
|
$ 33.05 | |||||
| 8 | W10450289 | Harness, Main |
|
- | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | W11778253 | Lint Screen (Replaces: 8558463) |
|
Immediately | $ 52.03 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.82 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | WP357213 | Nut, Push-in (Replaces: 357213) |
|
$ 7.39 | |||||
| 15 | WPW10446920 | Switch, Push To Start (Replaces: W10446920) |
|
Immediately | $ 88.11 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 17 | WPW10453947 | Assembly, Knob (white) (Replaces: W10453947) |
|
$ 52.15 | |||||
| 18 | WPW10436303 | Assembly, Timer (Replaces: W10436303) |
|
Immediately | $ 197.69 | ||||
| 19 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10453946) |
|
Immediately | $ 7.93 | ||||
| 20 | WPW10429629 | Panel, Control (white) (Replaces: W10429629) |
|
$ 257.44 |
