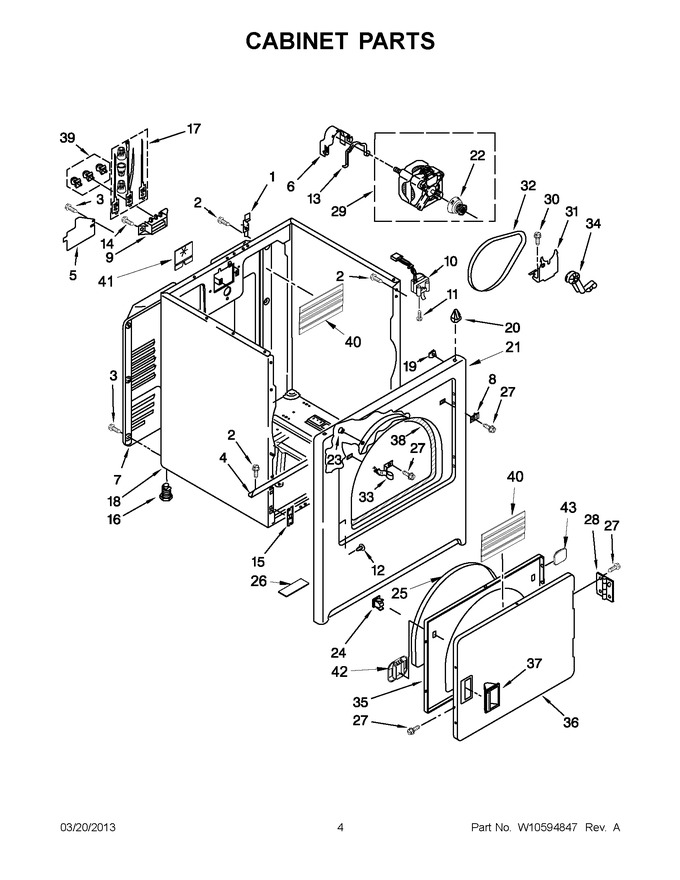

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8066217		Hinge, Top   (Replaces: 8066217)				$ 7.82
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W10236073		Bracket, Cabinet		Appelez-nous	-
5	W11298298		Cover, Terminal Block   (Replaces: W10571619)				$ 89.44
6	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 7.82
7	280043		Panel, Rear   (Replaces: W10571724)				$ 341.30
8	W11684591		Plug, Strike   (Replaces: W10567345)			Immediately	$ 7.74
9	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
10	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw   (Replaces: 697773)				$ 7.70
12	WP3404413		Plug-hole   (Replaces: 3404413)			Immediately	$ 7.95
13	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
14	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
17	279318		Terminal, Brass & Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 19.50
21	W10806345		Panel, Front (white)   (Replaces: W10224853)				$ 232.74
22	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
24	W11429587		Assembly, Door Catch   (Replaces: W10529190)			Immediately	$ 25.29
25	W10861521		Seal, Door   (Replaces: W10389572)			Immediately	$ 58.69
26	W10567977		Pad, Front Panel		Appelez-nous	-
27	WP488627		Screw   (Replaces: 342055)				$ 7.57
28	WPW10362431		Assembly, Hinge & Pin   (Replaces: W10362431)			Immediately	$ 7.91
29	279827		Assembly, Motor   (Replaces: W10396029)			Immediately	$ 191.95
30	3400500		Bolt			Immediately	$ 13.37
31	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
32	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
33	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
34	WP691366		Assembly, Idler   (Replaces: 691366)			Immediately	$ 22.47
35	WPW10463967		Assembly, Inner Door   (Replaces: W10463967)				$ 219.71
36	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 256.44
37	W10909035		Handle, Door (white)   (Replaces: W10549552)				$ 80.55
38	W11035878		Assembly, Seal & Bearing   (Replaces: W10568603)			Immediately	$ 78.78
39	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
40	W10636378		Pad, Door Handle   (Replaces: W10532676)				$ 66.39
41	W11627518		Pad, Power Cord   (Replaces: W10574733)				$ 21.46
42	WPW10529197		Bezel, Door Catch   (Replaces: W10529197)			Immediately	$ 25.46
43	W11173656		Cover, Door Catch   (Replaces: W10529198)				$ 7.81
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
