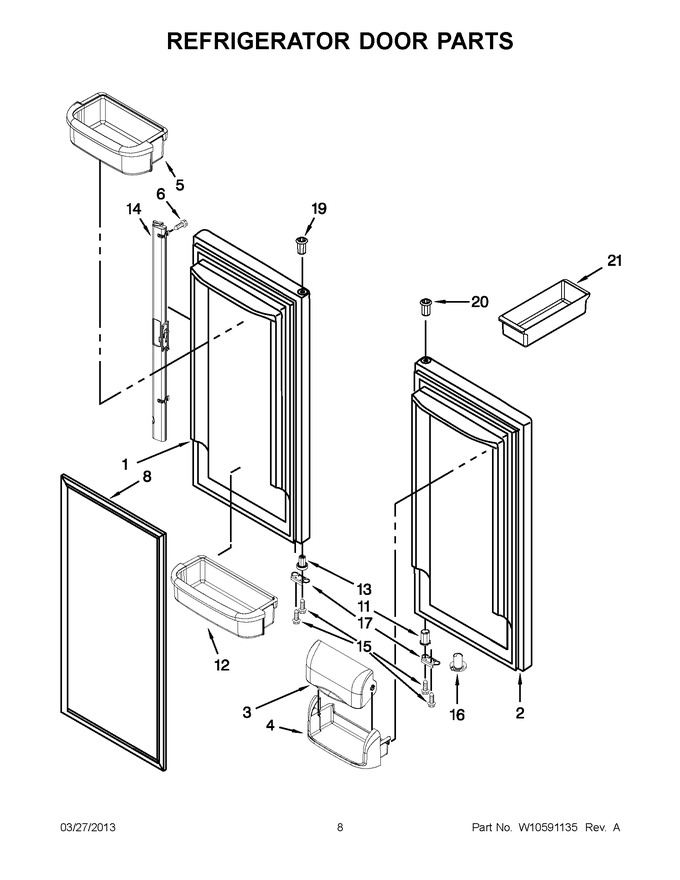

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732428B		Door, Left (black)		Appelez-nous	-
2	12732422B		Door, Left (black)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10371195		Bucket, Medium   (Replaces: W10371195)			Immediately	$ 87.37
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	67001656		Trivet-wine   (Replaces: 12525101)				$ 72.49
8	W11368721		Gasket, Door (black)   (Replaces: W10435968)			Immediately	$ 169.21
11	WP67002731		Bushing, Door (black)   (Replaces: 12028601B)			Immediately	$ 8.24
12	WPW10289498		Bucket, Gallon   (Replaces: W10289498)				$ 109.26
13	WP67002721		Bushing, Door (black)   (Replaces: 12699301B)			Immediately	$ 8.25
14	12722811AP		Mullion, Door (grey)		Appelez-nous	-
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
17	W10153126		Stop, Door (black)				$ 15.56
19	12395501B		Bushing, Door (upper Left) (black)		Appelez-nous	-
20	67004978		Bushing, Door (upper Right) (black)   (Replaces: 10961006B)				$ 22.10
21	W10136387A		Bin, Egg   (Replaces: 2216624)				$ 19.54
