SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts

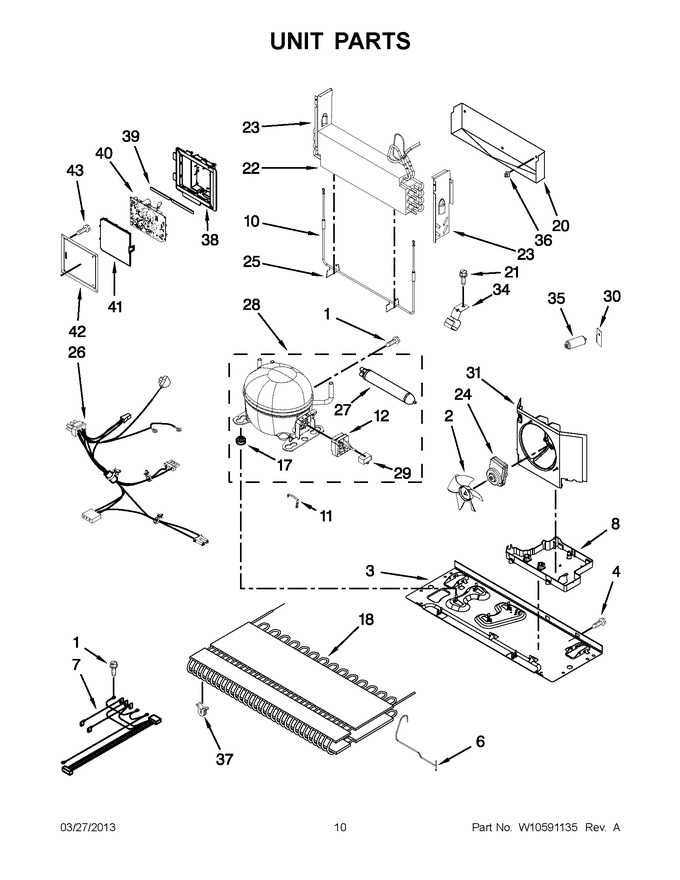

05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Ice Maker Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10480111)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
6	W10392492		Tube, Discharge		Appelez-nous	-
7	W10280430		Harness, Evap Heater		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
10	12729132		Heater, Defrost		Appelez-nous	-
11	2302129		Bale Strap		Appelez-nous	-
12	W10361441		Start Protect, Combo (device, Start)		Appelez-nous	-
17	WPW10169124		Grommet, Compressor   (Replaces: 10835903SP)				$ 7.55
18	WPW10346420		Condenser   (Replaces: W10346420)				$ 294.36
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 57.02
21	WP33001882		Screw   (Replaces: 12990701)				$ 83.71
22	W11256565		Evaporator   (Replaces: W10317014)			Immediately	$ 383.47
23	12225702		Dam (right Hand)				$ 14.09
23	12225602		Dam (left Hand)				$ 14.66
24	WPW10246191		Motor, Fan   (Replaces: W10246191)				$ 317.39
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10462018		Cord-power		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 30.78
28	W10183407		Compressor Kit (contains Items 12, 17, 27, & 29)   (Replaces: W10223234)				$ 435.61
29	2321245		Capacitor		Appelez-nous	-
30	W10217546		Bracket, Filter		Appelez-nous	-
31	W10189187		Shroud		Appelez-nous	-
34	W10281329		Clip, Drier				$ 13.73
35	12689303		Filter, Line		Appelez-nous	-
36	10623002		Clip, Evaporator				$ 12.11
37	WPW10137529		Grommet-condenser   (Replaces: W10137529)				$ 8.76
38	W10257666		Box-hv Control		Appelez-nous	-
39	12957801SP		Gasket, Hv Box		Appelez-nous	-
40	WPW10276422		Board-hv Control   (Replaces: W10276422)				$ 167.40
41	W11226688		Lid, Hv Box   (Replaces: 12957702SP)				$ 85.16
42	12961602		Cover, Control Box				$ 116.19
43	W11686675		Screw   (Replaces: 12990702)				$ 14.27
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access			Immediately	$ 134.49
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 137.25
NI	876764		Valve, Access			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (6.2 Oz. (r134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
