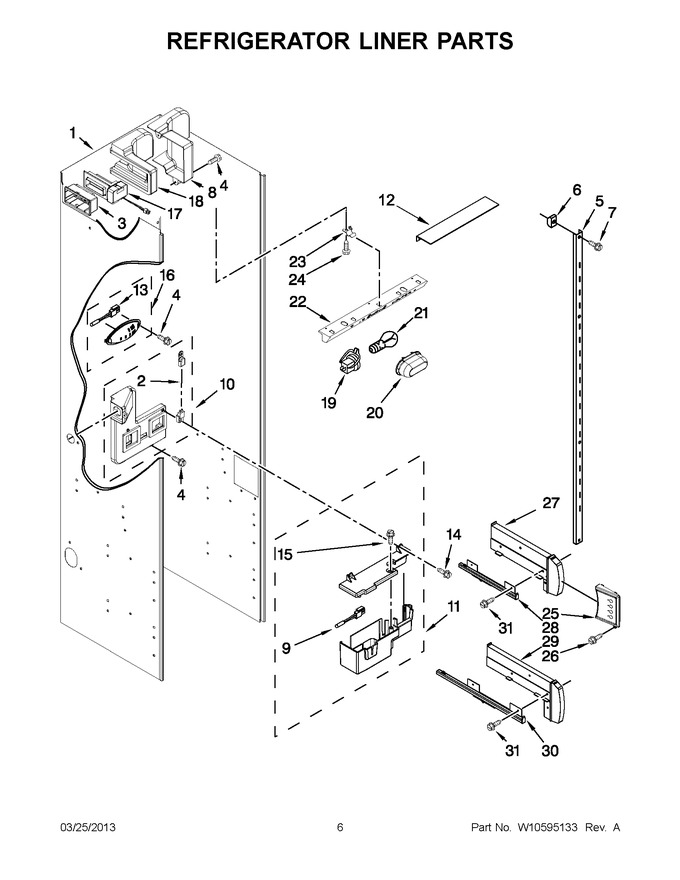

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | WP2306010 | Thermistor (Replaces: 2306010) |
|
Immediately | $ 103.58 | ||||
| 3 | 2208970 | Air Duct |
|
$ 151.40 | |||||
| 4 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 5 | WP2259077 | Ladder, Shelf (Replaces: 2259077) |
|
$ 82.56 | |||||
| 6 | 520965 | Support, Ladder |
|
$ 31.35 | |||||
| 7 | 2006475 | Screw (white) |
|
- | |||||
| 8 | 2309087 | Cover, Diffuser |
|
- | |||||
| 9 | WP2302937 | Thermistor Assembly (Replaces: 2302937) |
|
$ 88.41 | |||||
| 10 | W10475010 | Assembly, Spacer |
|
$ 323.65 | |||||
| 11 | WPW10169528 | Baffle, Control Assembly (Replaces: W10169528) |
|
$ 337.58 | |||||
| 12 | W10159487 | Diverter, Crisper Cover |
|
- | |||||
| 13 | WP2188820 | Thermistor, Rc (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 14 | W11830745 | Screw (stainless) (Replaces: 8533929) |
|
- | |||||
| 15 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 16 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 11.38 | |||||
| 17 | WP2221296 | Air Baffle Assembly (Replaces: 2221296) |
|
Immediately | $ 412.58 | ||||
| 18 | WP2309222 | Diffuser Assembly (Replaces: 2309222) |
|
$ 102.07 | |||||
| 19 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 20 | 2307751 | Light Shield |
|
$ 17.27 | |||||
| 21 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 22 | W10468947 | Control Box Assembly |
|
Immediately | $ 1,174.40 | ||||
| 23 | 2317000 | Clip, Control Box |
|
- | |||||
| 24 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 25 | WP2306086 | Assembly, Ui (Replaces: 2306086) |
|
$ 333.46 | |||||
| 26 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 27 | 2256244 | Spacer, Meat Pan (right Hand) |
|
$ 103.70 | |||||
| 27 | 2256243 | Spacer, Meat Pan (left Hand) |
|
$ 83.04 | |||||
| 28 | 2302955 | Slide, Meat Pan (right Hand) |
|
$ 343.18 | |||||
| 28 | 2302954 | Slide, Meat Pan (left Hand) |
|
$ 343.49 | |||||
| 29 | 2256223 | Spacer, Crisper (left Hand) |
|
$ 84.49 | |||||
| 29 | 2256222 | Spacer, Crisper (right Hand) |
|
$ 89.24 | |||||
| 30 | 2302957 | Slide, Crisper (right Hand) |
|
$ 228.33 | |||||
| 30 | 2302956 | Slide, Crisper (left Hand) |
|
$ 298.73 | |||||
| 31 | W11830745 | Screw Right Hand (stainless) (Replaces: 8533929) |
|
- | |||||
| 31 | WP8533928 | Screw Left Hand (stainless) (Replaces: 8533928) |
|
Immediately | $ 8.26 |
