SELECT A DIAGRAM

Diagram for 01 - Cabinet Parts
01 - Cabinet Parts

Diagram for 02 - Cabinet Trim Parts
02 - Cabinet Trim Parts

Diagram for 03 - Refrigerator Liner Parts
03 - Refrigerator Liner Parts

Diagram for 04 - Freezer Liner And Air Flow Parts
04 - Freezer Liner And Air Flow Parts

Diagram for 05 - Refrigerator Shelf Parts
05 - Refrigerator Shelf Parts

Diagram for 06 - Freezer Shelf Parts
06 - Freezer Shelf Parts

Diagram for 07 - Refrigerator Door Parts
07 - Refrigerator Door Parts

Diagram for 08 - Freezer Door Parts
08 - Freezer Door Parts

Diagram for 09 - Top Grille & Unit Cover
09 - Top Grille & Unit Cover

Diagram for 10 - Upper Unit Parts
10 - Upper Unit Parts

Diagram for 11 - Lower Unit & Tube Parts
11 - Lower Unit & Tube Parts

Diagram for 12 - Ice Maker Parts
12 - Ice Maker Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10321106 Top Grille Assembly (stainless) Special Order $ 220.08

2 W10188580 Cover, Unit Special Order $ 274.17

3 2256466 Panel, Back Special Order $ 327.22

4 W10185625 Unit Cover, Front Special Order $ 262.53

5 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 8.40

6 2317923S Nameplate (grey) Appelez-nous -
7 WP489399 Screw   (Replaces: 489399) Special Order $ 7.30

8 WP2004333 Nut   (Replaces: 2004333) Special Order $ 11.24


    View Diagram in Separate Window     Print Icon   Print Part List

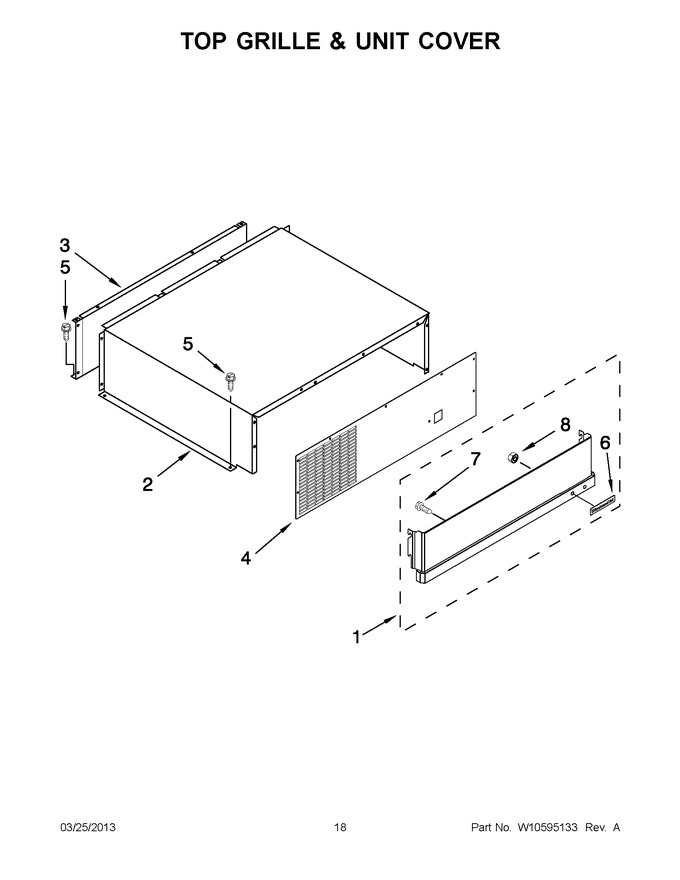

Diagram for KSSC42FTS17
