01 - Top And Cabinet Parts
02 - Door Parts

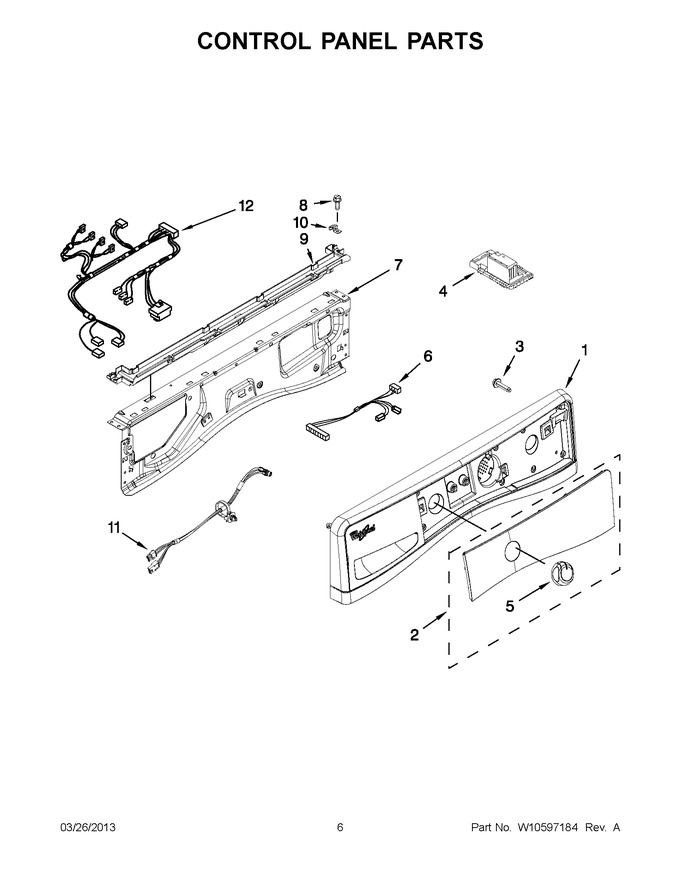

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10548481 | Assembly, Console (chrome Shadow) |
|
$ 197.05 | |||||
| 2 | W10555395 | Iml Assembly (chrome Shadow) |
|
$ 708.92 | |||||
| 3 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 4 | W10583356 | Control Unit, Central |
|
$ 339.32 | |||||
| 5 | W10391535 | Knob Assembly |
|
$ 25.18 | |||||
| 6 | WPW10486216 | Harness, Ui Jumper (Replaces: W10486216) |
|
$ 18.00 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10486571 | Harness, Ui (Replaces: W10486571) |
|
$ 19.47 | |||||
| 12 | WPW10550613 | Harness, Main (upper) (Replaces: W10550613) |
|
$ 256.71 |
