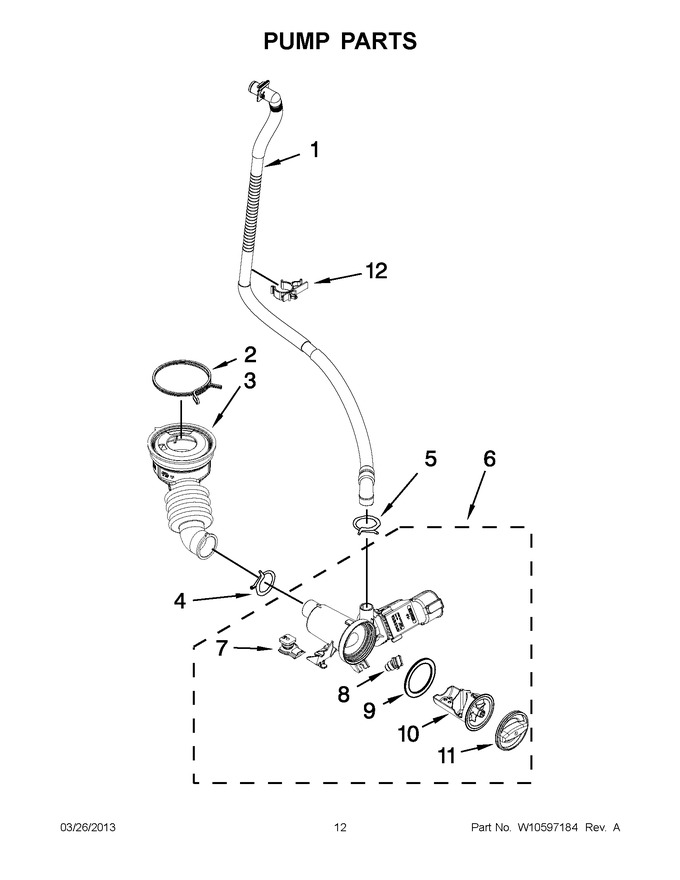

01 - Top And Cabinet Parts
02 - Door Parts
03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10267642 | Drain Hose (internal) (Replaces: W10267642) |
|
$ 59.94 | |||||
| 2 | WP696392 | Clamp, Hose (Replaces: 8181734) |
|
$ 9.08 | |||||
| 3 | WPW10467168 | Hose, Tub To Pump (Replaces: W10467168) |
|
Immediately | $ 40.23 | ||||
| 4 | W10273036 | Clamp, Hose |
|
$ 16.28 | |||||
| 5 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 6 | WPW10391443 | Pump (complete) (Replaces: W10391443) |
|
Immediately | $ 220.04 | ||||
| 7 | W10391449 | Grommet, Damper (rear) |
|
$ 20.72 | |||||
| 8 | WPW10526202 | Grommet, Damper (front) (Replaces: 8182816) |
|
$ 17.04 | |||||
| 9 | W10391451 | Seal, Filter Cap |
|
Immediately | $ 19.43 | ||||
| 10 | W10391445 | Filter, Pump |
|
$ 58.30 | |||||
| 11 | W10391446 | Cap, Filter |
|
$ 24.40 | |||||
| 12 | W10441646 | Retainer, Drain Hose |
|
$ 19.53 |
