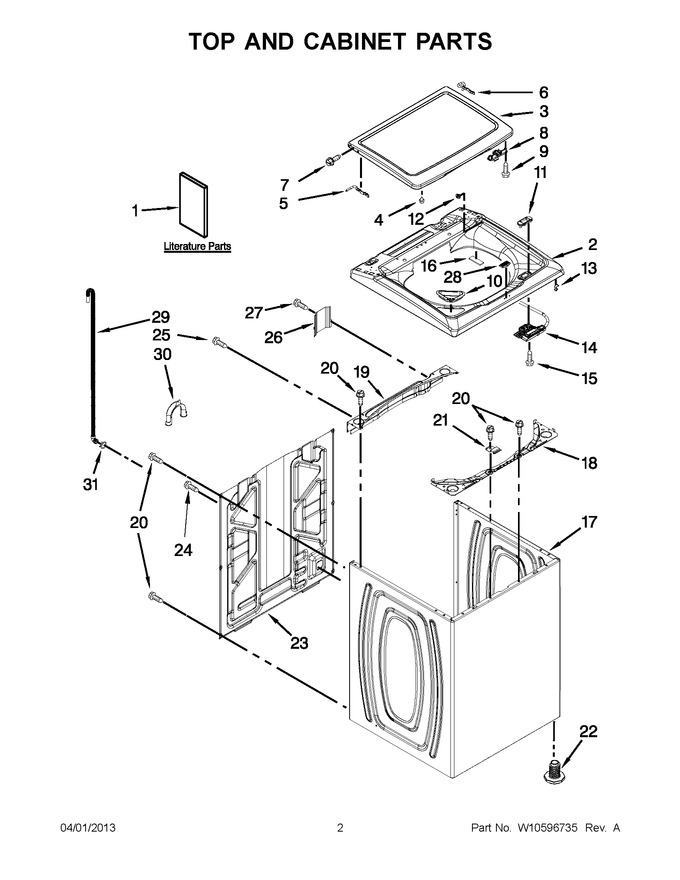

01 - Top And Cabinet Parts
02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10549313 | Installation Instructions |
|
- | |||||
| 1 | W10492230 | Tech Sheet |
|
- | |||||
| 1 | W10549309 | Use & Care Guide |
|
- | |||||
| 2 | W10238290 | Top (white) |
|
$ 145.90 | |||||
| 3 | W10270565 | Lid & Bumper Assembly (white) |
|
$ 386.15 | |||||
| 4 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 5 | W10295775 | Hinge, Wire (l.h.) |
|
$ 22.93 | |||||
| 6 | W10569655 | Hinge Wire (r.h.) (Replaces: W10294031) |
|
$ 23.99 | |||||
| 7 | WPW10119828 | Screw, Lid Hinge (Replaces: W10119828) |
|
Immediately | $ 7.55 | ||||
| 8 | WPW10240513 | Strike, Lid Lock (Replaces: W10240513) |
|
Immediately | $ 39.57 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.55 | ||||
| 10 | W10854969 | Dispenser, Bleach (Replaces: W10240977) |
|
$ 109.90 | |||||
| 11 | WPW10392041 | Bezel, Lid Lock (Replaces: W10392041) |
|
Immediately | $ 8.00 | ||||
| 12 | W10293272 | Bearing, Lid Hinge (left) |
|
$ 12.86 | |||||
| 12 | W10293230 | Bearing, Lid Hinge (right) |
|
$ 16.84 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | WPW10294102 | Lock, Lid (Replaces: W10294102) |
|
Immediately | $ 262.31 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 10.70 | ||||
| 16 | W10333228 | Pad, Lid Hinge |
|
- | |||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 481.79 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 79.79 | |||||
| 19 | W11712680 | Brace, Cabinet Top - Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 21 | WPW10248088 | Lock, Top (Replaces: W10248088) |
|
$ 18.83 | |||||
| 22 | WPW10687506 | Foot, Leveling (Replaces: W10397994) |
|
Immediately | $ 26.07 | ||||
| 23 | W11486091 | Panel Rear (Replaces: W10250884) |
|
Immediately | $ 327.72 | ||||
| 24 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 25 | WP489128 | Screw (Replaces: W10142728) |
|
$ 11.40 | |||||
| 26 | W10676061 | Cover, Harness (Replaces: W10215139) |
|
$ 36.77 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 28 | W10492808 | Badge |
|
$ 59.82 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 32.07 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 |
