01 - Top And Cabinet Parts


02 - Console And Dispenser Parts

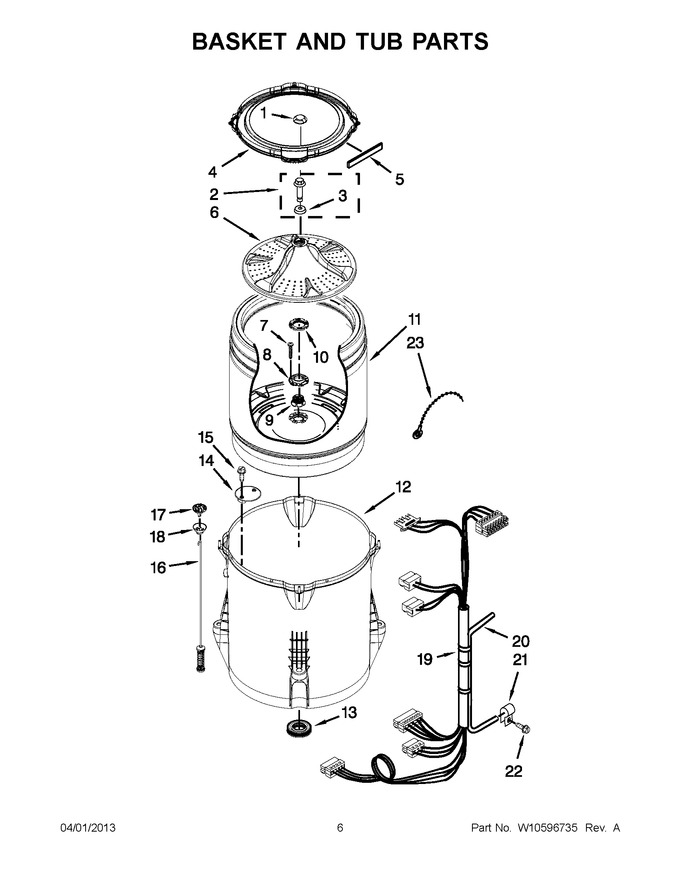

03 - Basket And Tub Parts


04 - Gearcase, Motor And Pump Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10305251		Hinge, Spring Assembly   (Replaces: W10305251)			Immediately	$ 23.12
2	W10772621		Screw & Washer   (Replaces: W10003790)			Immediately	$ 5.24
3	WP3949550		Washer   (Replaces: 3949550)			Immediately	$ 11.09
4	W10215146		Tub Ring				$ 84.89
5	W10205824		Absorber, Impact				$ 80.64
6	WPW10553968		Impeller (washplate)   (Replaces: W10215116)				$ 312.80
7	WP8533953		Screw   (Replaces: 8533953)			Immediately	$ 7.55
8	W10324651		Hub - Driven, Basket   (Replaces: W10291415)			Immediately	$ 104.65
9	W10324651		Block, Basket Drive   (Replaces: W10291416)			Immediately	$ 104.65
10	W10324651		Nut, Spanner   (Replaces: W10291417)			Immediately	$ 104.65
11	W10324650		Basket Assembly   (Replaces: W10238268)			Immediately	$ 484.87
12	W10324648		Tub   (Replaces: W10238301)				$ 361.85
13	W10324647		Seal, Tub   (Replaces: W10006371)			Immediately	$ 93.50
14	WPW10215093		Filter, Drain Pump   (Replaces: W10215093)				$ 65.26
15	WP8533928		Screw (stainless)   (Replaces: 8533928)			Immediately	$ 8.26
16	W10780051		Damper Assembly, Tub Suspension (set Of 4-includes Items 17 & 18)   (Replaces: W10257085)			Immediately	$ 248.97
17	W10405423		Ball, Suspension (set Of 4 - Includes Suspension Bushings)		Appelez-nous	-
18	W10256551		Bushing - Upper Suspension (set Of 4 - Includes Suspension Balls)		Appelez-nous	-
19	WPW10297443		Harness, Lower   (Replaces: W10328392)			Immediately	$ 278.03
20	WP353244		Hose, Pressure Switch   (Replaces: W10312655)			Immediately	$ 59.93
21	W10005430		Clamp, Cable			Immediately	$ 9.53
22	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 8.80
23	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.98
