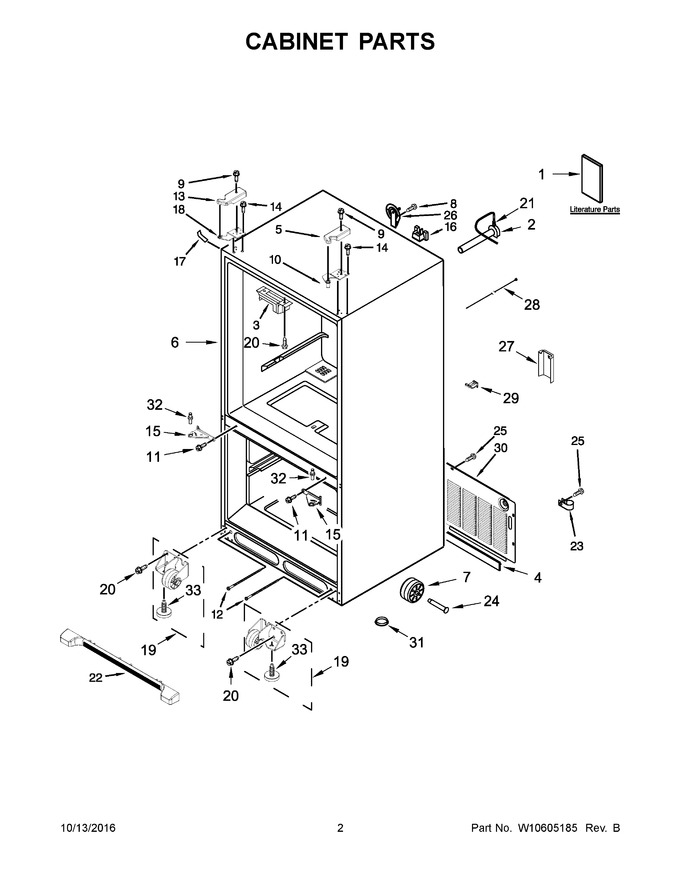

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10524420 | Tech Sheet |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | 12629801AP | Cover, Right Hinge (grey) |
|
$ 13.71 | |||||
| 6 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 7 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 12626910ED | Hinge, Top (right Hand) |
|
$ 124.87 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | WP939101 | Screw Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 13 | W10217487 | Cover, Left Hinge (grey) |
|
$ 22.48 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | 12655102AP | Hinge, Center (grey) |
|
$ 150.87 | |||||
| 16 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 23.57 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | 12626911ED | Hinge, Top (left Hand) |
|
$ 89.05 | |||||
| 19 | W11820445 | Roller Assembly(front) (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 23 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 24 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | W10129974 | Fill Tube |
|
- | |||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 30 | W10523254 | Cover, Unit |
|
- | |||||
| 31 | A3076901 | Plug, Button (black) |
|
$ 5.70 | |||||
| 32 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 33 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 19A | W11820444 | Roller Assembly(front) (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 |
