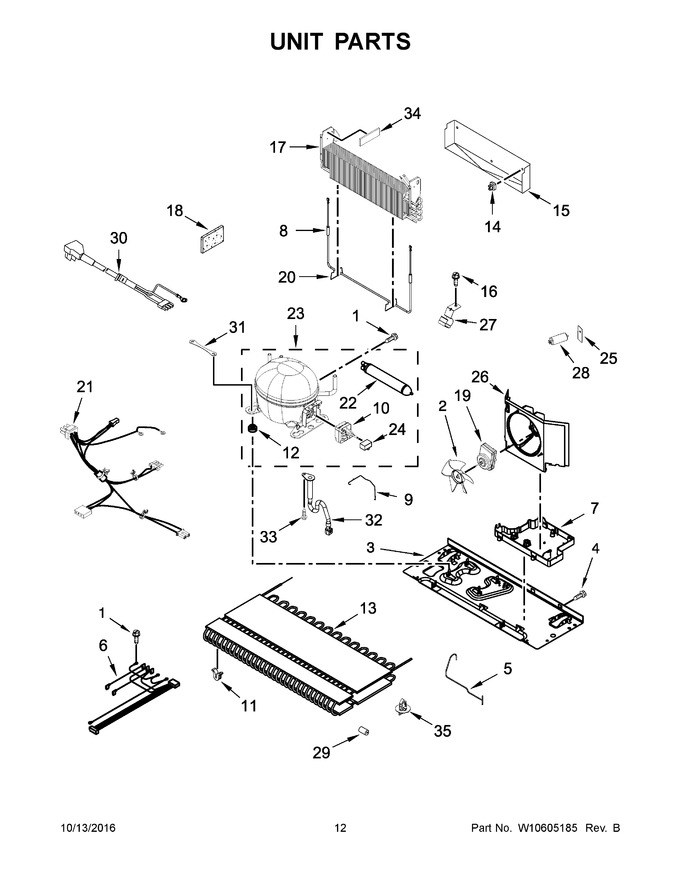

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10480111) |
|
$ 110.55 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | W10392492 | Tube, Discharge |
|
- | |||||
| 6 | W10548674 | Harness, Evaporator Heater |
|
- | |||||
| 7 | WPW10655368 | Pan, Drain (Replaces: W10655368) |
|
Immediately | $ 99.03 | ||||
| 8 | W10550922 | Heater, Defrost |
|
- | |||||
| 9 | 2302129 | Strap, Bale |
|
- | |||||
| 10 | W10796753 | Device, Start |
|
- | |||||
| 11 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.76 | |||||
| 12 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 7.55 | |||||
| 13 | WPW10346420 | Condenser (Replaces: W10346420) |
|
$ 294.36 | |||||
| 14 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 15 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 57.02 | |||||
| 16 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 17 | W11256565 | Evaporator (Replaces: W10669255) |
|
Immediately | $ 383.47 | ||||
| 18 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 19 | WPW10246191 | Motor, Fan (Replaces: W10246191) |
|
$ 317.39 | |||||
| 20 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 21 | W10523996 | Harness, Unit |
|
- | |||||
| 22 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 23 | W10183407 | Compressor (Replaces: W10120455) |
|
$ 435.61 | |||||
| 24 | 2321245 | Capacitor |
|
- | |||||
| 25 | W10217546 | Bracket, Filter |
|
- | |||||
| 26 | W10189187 | Shroud |
|
- | |||||
| 27 | W10281329 | Clip, Drier |
|
$ 13.73 | |||||
| 28 | W10572234 | Filter, Line |
|
- | |||||
| 29 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 30 | W10462018 | Cord, Power |
|
- | |||||
| 31 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 32 | W10619951 | Extension, Drain Tube (Replaces: W10622099) |
|
Immediately | $ 42.39 | ||||
| 33 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 34 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 13.03 | |||||
| 35 | W10815863 | Clip, Condenser |
|
Immediately | $ 40.66 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 | |||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 4.50 Oz. (r-134a) |
|
- |
