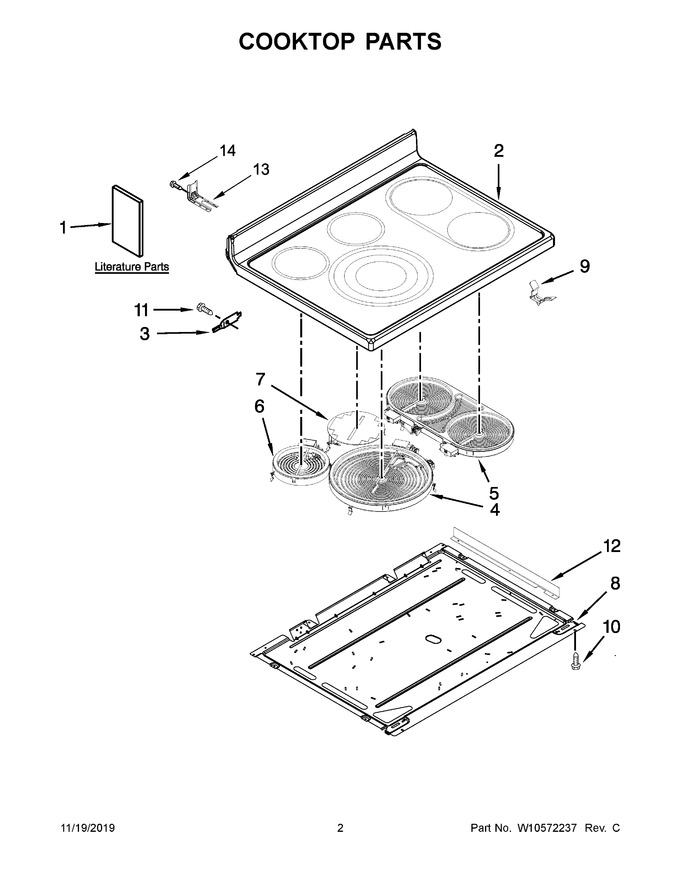

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10392924		Use And Care Guide		Appelez-nous	-
2	W10380672		Cooktop (white)		Appelez-nous	-
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10162041		Element (3000/2200/1100w) (left Front)   (Replaces: W10162041)				$ 385.99
5	WPW10248259		Element, Bridge (right Front & Right Rear)   (Replaces: W10248259)				$ 374.15
6	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 145.32
7	W11041453		Element, Warm Zone (center)   (Replaces: W10799048)				$ 132.95
8	W11728329		Pan, Radiant Element   (Replaces: W10106409)			Immediately	$ 143.49
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	3196172		Screw			Immediately	$ 13.47
12	W10348913		Bracket, L-bridge		Appelez-nous	-
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
14	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W10522408		Tech Sheet, English		Appelez-nous	-
1B	W10522409		Tech Sheet, French		Appelez-nous	-
1C	W10403812		Instructions, Installation		Appelez-nous	-
1D	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1E	W10400065		Guide, Quick Start (french)		Appelez-nous	-
2A	W10380673		Cooktop (black)		Appelez-nous	-
NI	W11212183		Harness, Sensor   (Replaces: W10349640)				$ 235.64
NI	W10349735		Harness, Wire (cooktop Left)				$ 169.76
NI	W10349700		Harness, Cooktop Right		Appelez-nous	-
NI	W10349698		Harness, Wire Main				$ 276.54
NI	W11134592		Harness, Warm Zone   (Replaces: W10174460)				$ 117.26
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
