01 - Cover Sheet
02 - Cooktop Parts

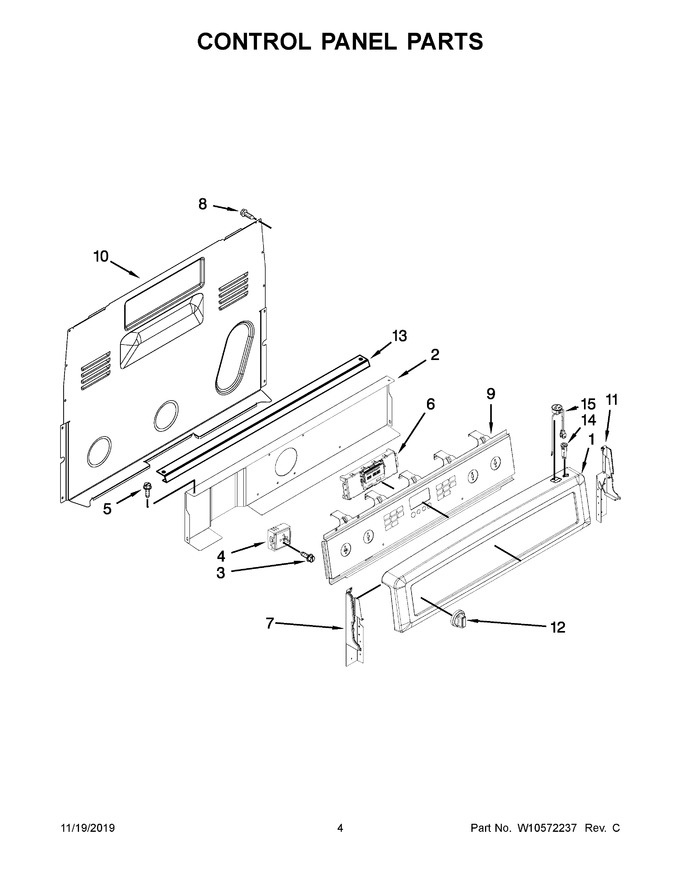

03 - Control Panel Parts
04 - Door Parts
05 - Chassis Parts
06 - Drawer And Rack Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10214551 | Panel, Backguard (white) |
|
$ 104.18 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10391743 | Switch, Infinite (left Front) (Replaces: W10391743) |
|
Immediately | $ 123.53 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 6 | WPW10340323 | Control (mrc) (Replaces: W10340323) |
|
Immediately | $ 389.59 | ||||
| 7 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 9 | WPW10339433 | Assembly, Active Overlay (white) (Replaces: W10339433) |
|
$ 311.31 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 12 | W10370184 | Knob (white) |
|
$ 83.65 | |||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 14 | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 15 | W10849725 | Receptacle (white) (Replaces: W10749727) |
|
Immediately | $ 80.79 | ||||
| 11A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 12A | W10370185 | Knob (black) |
|
$ 22.80 | |||||
| 12B | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 22.45 | ||||
| 14A | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 15A | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 18.47 | ||||
| 1A | W10225556 | Panel, Backguard (black) |
|
$ 109.86 | |||||
| 1B | WPW10225557 | Panel, Backguard (stainless) (Replaces: W10225557) |
|
$ 185.73 | |||||
| 4A | 5500-287 | Switch, Infinite (green) (right Front) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4B | WPW10434452 | Switch, Infinite (dual) (right Rear) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4C | WPW10411934 | Switch, Infinite (left Rear) (Replaces: W10411934) |
|
Immediately | $ 109.39 | ||||
| 7A | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 9A | W10339434 | Assembly, Active Overlay (black) |
|
$ 245.97 | |||||
| 9B | W10339435 | Assembly, Active Overlay (stainless) |
|
$ 290.25 |
