01 - Cabinet, Door And Liner Parts

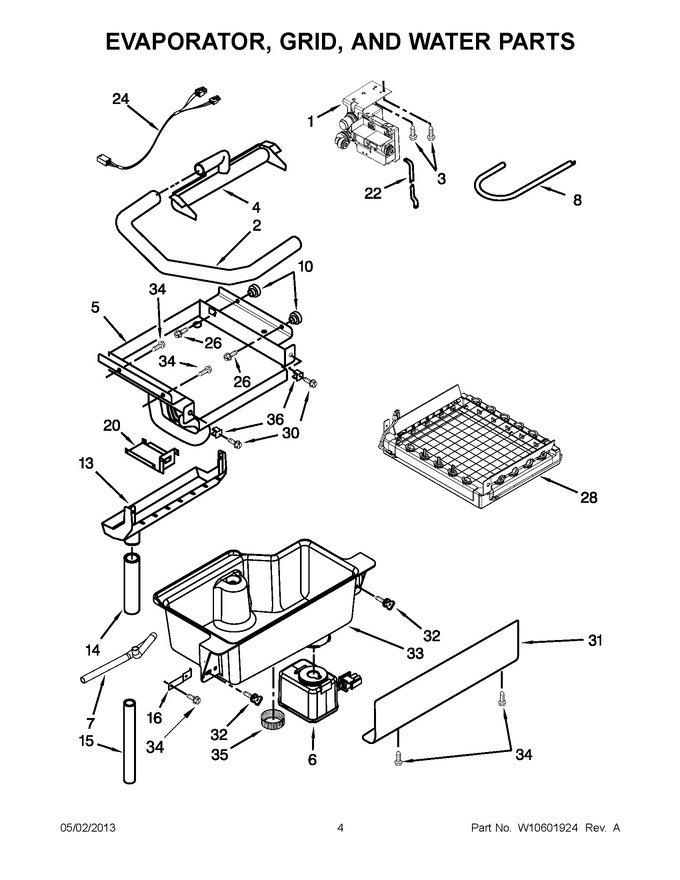

02 - Evaporator, Grid, And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10340983		Valve, Electronic Smart   (Replaces: W10340983)				$ 297.49
2	W10863947		Tube, Plastic   (Replaces: 2217286)				$ 78.70
3	WP488163		Screw   (Replaces: 488208)				$ 7.13
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 78.70
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 503.87
6	W11566407		Pump, Drain   (Replaces: 2313705)			Immediately	$ 127.24
7	2313851		Tube, Reservoir Pump				$ 46.00
8	WPW10418868		Tube, Water Fill   (Replaces: W10418868)				$ 69.50
10	836667		Spacer		Appelez-nous	-
13	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 169.51
14	WP2185626		Tube   (Replaces: 2185626)				$ 99.74
15	WP2313890		Hose, Overflow   (Replaces: 2313890)				$ 71.88
16	2217378		Bracket, Reservoir Spacer		Appelez-nous	-
20	2208427		Support, Bracketevaporator Grid		Appelez-nous	-
22	WPW10217922		Assembly, Plug Tube   (Replaces: W10517965)				$ 142.62
24	WP2310169		Wire Assembly, Smart Valve   (Replaces: 2310169)				$ 117.72
26	3400886		Screw (stainless)				$ 5.65
28	WP2313637		Grid Assembly (includes Wire Harness)   (Replaces: W10536696)				$ 345.86
30	WP90767		Screw (stainless)   (Replaces: 8281192)			Immediately	$ 7.43
31	2208365		Cover, Grid		Appelez-nous	-
32	8281228		Thumbscrew		Appelez-nous	-
33	WP2324334		Reservoir, Water   (Replaces: 2324334)				$ 183.51
34	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
35	W11023835		Cap, Drain   (Replaces: W10503850)				$ 29.79
36	WP3400909		Grommet, Screw   (Replaces: 3400909)				$ 7.15
