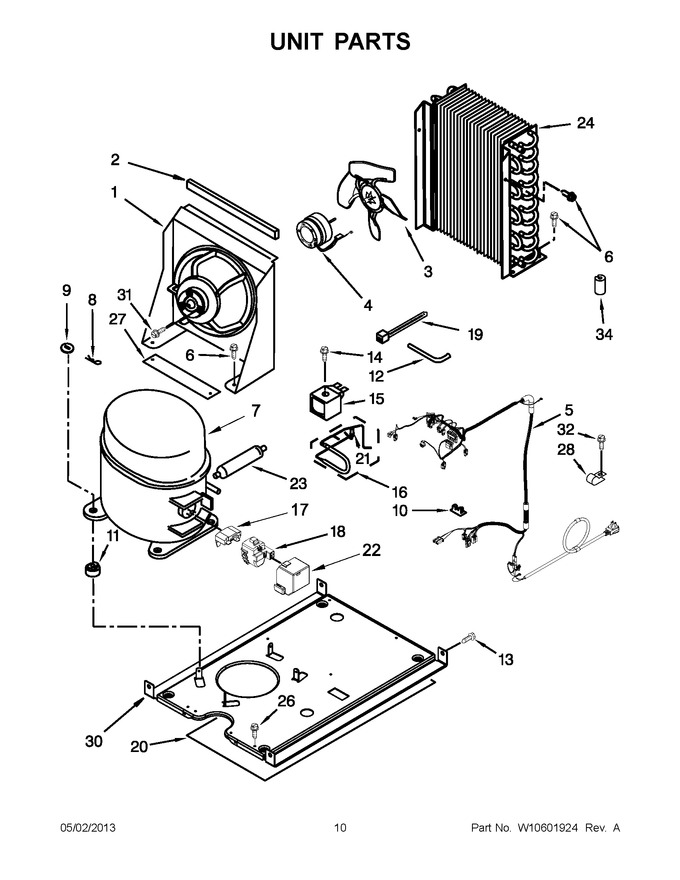

05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | W10200034 | Blade, Fan |
|
- | |||||
| 4 | W10200032 | Motor, Condenser |
|
$ 368.92 | |||||
| 5 | W10483745 | Assembly, Cab Wire |
|
- | |||||
| 6 | WP67006908 | Screw (Replaces: 8281244) |
|
Immediately | $ 8.78 | ||||
| 7 | W11735041 | Compressor (Replaces: W10536005) |
|
$ 675.23 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 9.25 | |||||
| 10 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 11 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 38.79 | |||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | W10534026 | Assembly, Hot Gas Solenoid |
|
- | |||||
| 17 | WP2217223 | Protector, Overload (Replaces: 2217223) |
|
$ 142.71 | |||||
| 18 | WP2217224 | Start, Device (Replaces: 2217224) |
|
Immediately | $ 104.82 | ||||
| 19 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 20 | W10282061 | Shield, Heat |
|
- | |||||
| 21 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 326.37 | |||||
| 22 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 95.29 | |||||
| 23 | W10843121 | Drier (production) (Replaces: W10200037) |
|
Immediately | $ 57.13 | ||||
| 24 | W10129494 | Assembly, Shroud Condensor |
|
- | |||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | 2217397 | Pad, Foam |
|
- | |||||
| 28 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 30 | W10122014 | Base, Unit |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 32 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 34 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| NI | N/P | Refrigerant Charge (5.50 Oz. (r-134a)) |
|
- |
