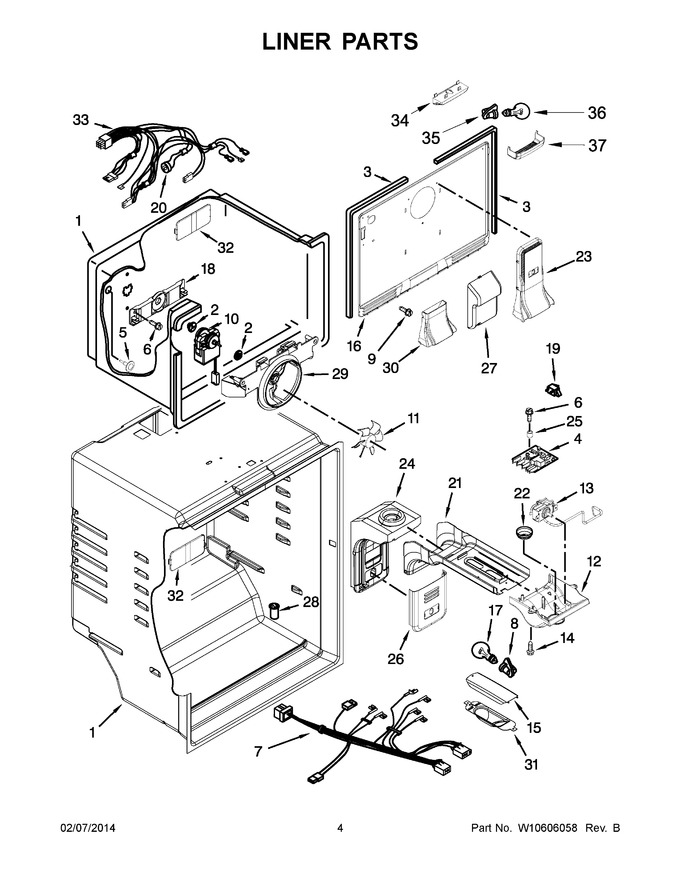

03 - Liner Parts
04 - Freezer Door Parts
05 - Refrigerator Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 28.12 | |||||
| 4 | WPW10352689 | Control, Adaptive Defrost (Replaces: W10352689) |
|
$ 299.70 | |||||
| 5 | WP941839 | Plug, Hole (white) (Replaces: 941839) |
|
$ 8.03 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 7 | W10576428 | Wire Assembly, Control Box |
|
$ 49.07 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 10.33 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 83.25 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 66.15 | ||||
| 12 | W10316941 | Box, Control |
|
$ 98.58 | |||||
| 13 | WPW10584888 | Assembly, Thermostat (Replaces: W10343913) |
|
Immediately | $ 197.80 | ||||
| 14 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 15 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 117.96 | |||||
| 16 | W10385132 | Cover, Evaporator |
|
- | |||||
| 17 | W11338583 | Lamp, Led (Replaces: W10565137) |
|
Immediately | $ 107.21 | ||||
| 18 | 2254454 | Bracket Evaporator Fan, Rear |
|
Immediately | $ 75.44 | ||||
| 19 | W11384469 | Switch, Rocker Arm (refrigerator) (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WPW10392132 | Defrost, Bi-metal (Replaces: W10392132) |
|
Immediately | $ 9.05 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 114.36 | |||||
| 22 | W10356940 | Knob |
|
- | |||||
| 23 | W10305174 | Tower, Air |
|
$ 43.06 | |||||
| 24 | W10376137 | Assembly, Air Diffuser |
|
- | |||||
| 25 | W10418502 | Spacer |
|
- | |||||
| 26 | W10310927 | Cup, Air Diffuser |
|
- | |||||
| 27 | WPW10339203 | Cover, Water Tube (Replaces: W10339203) |
|
$ 7.55 | |||||
| 28 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 99.15 | |||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 32.47 | ||||
| 30 | W10396926 | Assembly, Tower Connection |
|
$ 39.05 | |||||
| 31 | W10300161 | Shield, Light |
|
Immediately | $ 96.62 | ||||
| 32 | W10336009 | Cup, Screw |
|
$ 77.40 | |||||
| 33 | W11561072 | Assembly, Freezer Compartment Wire (Replaces: W10336529) |
|
$ 96.45 | |||||
| 34 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 91.07 | ||||
| 35 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 35.82 | ||||
| 36 | W11518235 | Lamp, Led (Replaces: W10574850) |
|
Immediately | $ 29.29 | ||||
| 37 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 95.34 |
