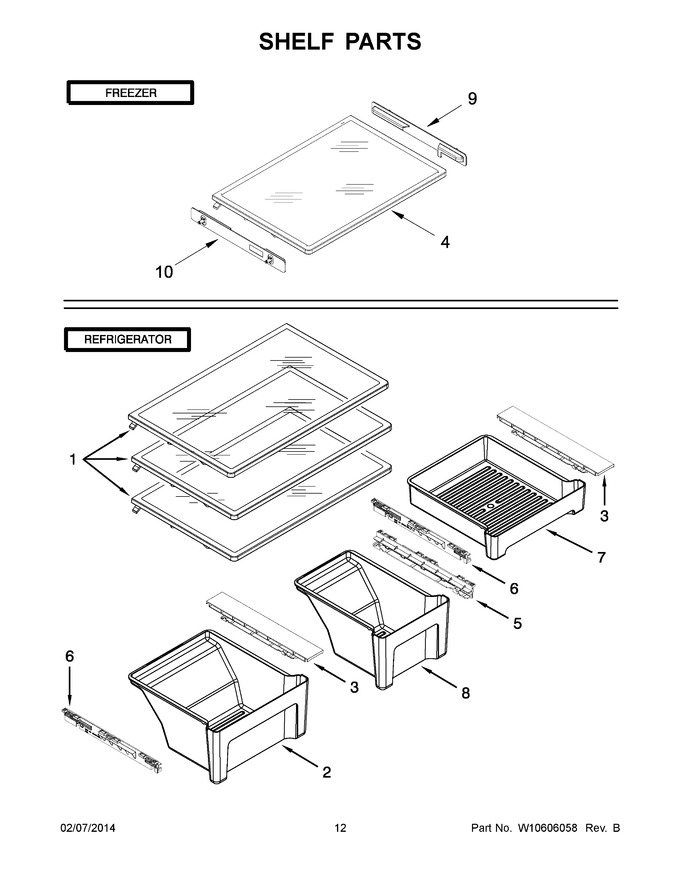

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10486289 | Assembly, Shelf |
|
$ 132.63 | |||||
| 2 | W10373936 | Assembly, 16`` Crisper Pan |
|
$ 68.71 | |||||
| 3 | WPW10468557 | Rail, Track (center) (Replaces: W10468557) |
|
Immediately | $ 30.75 | ||||
| 4 | WPW10486291 | Shelf, Freezer Glass (Replaces: W10486291) |
|
$ 302.44 | |||||
| 5 | WPW10468556 | Rail, Track (right Hand) (Replaces: W10468556) |
|
Immediately | $ 7.55 | ||||
| 6 | WPW10468555 | Rail, Track (left Hand) (Replaces: W10468555) |
|
Immediately | $ 25.10 | ||||
| 7 | WPW10308849 | Pan, Meat (Replaces: W10308849) |
|
$ 142.20 | |||||
| 8 | W10373943 | Pan, Crisper |
|
$ 57.54 | |||||
| 9 | W11395921 | Support, Freezer Shelf, Right Side (Replaces: W10345368) |
|
$ 30.07 | |||||
| 10 | W11395919 | Support, Freezer Shelf, Left Side (Replaces: W10345367) |
|
$ 30.07 |
