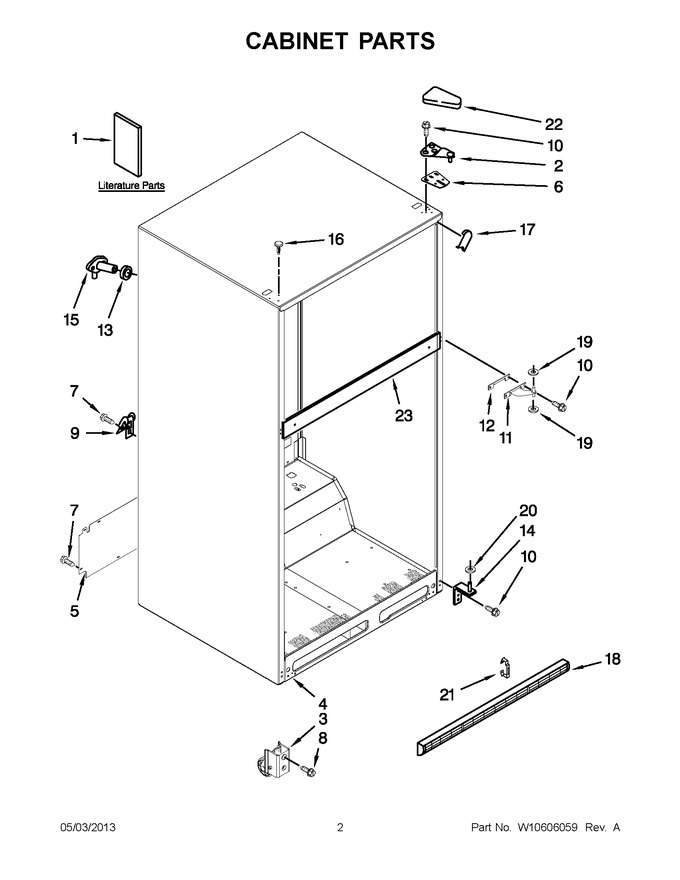

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404596 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10359368 | Energy Label |
|
- | |||||
| 1 | W10551713 | Guide, Use & Care |
|
- | |||||
| 1 | 677969 | Do-it-yourself Repair Manuals |
|
$ 30.30 | |||||
| 2 | WP2261963 | Assembly, Hinge, Top (Replaces: 2261963) |
|
Immediately | $ 119.42 | ||||
| 3 | W10849386 | Assembly, Roller (Replaces: W10327136) |
|
$ 114.75 | |||||
| 4 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 5 | WPW10384414 | Cover, Unit (Replaces: W10384414) |
|
$ 106.82 | |||||
| 6 | W11169703 | Shim, Top Hinge (Replaces: 2221885) |
|
$ 15.79 | |||||
| 7 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 8.28 | ||||
| 8 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 13.28 | |||||
| 9 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 10 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 11 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 92.02 | ||||
| 12 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 11.18 | |||||
| 13 | WP1106508 | Gasket, Seal (Replaces: 1106508) |
|
Immediately | $ 10.43 | ||||
| 14 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
$ 9.28 | |||||
| 15 | N/P | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 16 | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 7.55 | ||||
| 17 | W10851579 | Corner Filler (grey) (Replaces: W10283961) |
|
Immediately | $ 7.55 | ||||
| 18 | 2254530 | Grille (includes Illus. 21) (grey) |
|
- | |||||
| 19 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 20 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 10.74 | ||||
| 21 | 2189356 | Clip, Grille |
|
$ 5.70 | |||||
| 22 | W10853622 | Cover, Hinge (grey) (Replaces: 2254510) |
|
Immediately | $ 82.46 | ||||
| 23 | N/P | Rail, Center (not Serviced) |
|
- |
