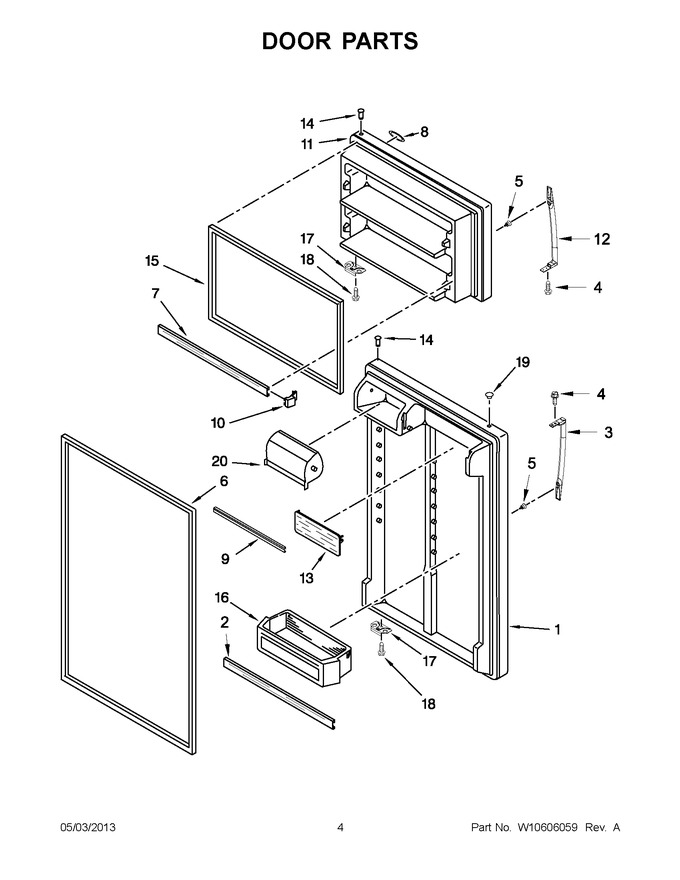

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10853404 | Refrigerator Door (includes Illus. 6) (stainless) (Replaces: W10359374) |
|
- | |||||
| 2 | WPW10421486 | Trim, Door (Replaces: W10421486) |
|
$ 114.74 | |||||
| 3 | W11026870 | Handle, Refrigerator (stainless) (Replaces: W10564292) |
|
$ 211.41 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 6 | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 335.80 | |||||
| 7 | W10463315 | Trim, Door |
|
- | |||||
| 8 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 9 | WP2201061 | Trim, Door (Replaces: W10421476) |
|
$ 124.32 | |||||
| 10 | WP2195916K | End Cap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 11 | W10853404 | Freezer Door (includes Illus. 15) (stainless) (Replaces: W10359372) |
|
- | |||||
| 12 | W11026870 | Handle, Freezer (stainless) (Replaces: W10564293) |
|
$ 211.41 | |||||
| 13 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 64.38 | |||||
| 14 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 15 | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 279.10 | ||||
| 16 | WP2204812 | Bin, Door (Replaces: 2204812) |
|
$ 80.45 | |||||
| 17 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 18 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 19 | WP2254517 | Hole Plug (grey) (Replaces: 2254517) |
|
Immediately | $ 24.34 | ||||
| 20 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 76.28 |
