Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10506658 Air Tower Appelez-nous -
2 W10506654 Cover, Fan Special Order $ 12.94

3 W10518444 Assembly, Evaporator Motor Special Order $ 128.00

4 W10435822 Plug, Endcap Appelez-nous -
5 N/P Service Sensor (not A Serviceable Part) Appelez-nous -
6 W10506496 Cover, Sensor Special Order $ 12.83

7 W10529907 Housing, Control Appelez-nous -
8 W10585770 Upper Hinge Cover, Right Appelez-nous -
9 W10585761 Upper Hinge Cover, Left Appelez-nous -
10 W10521573 Overlay Special Order $ 27.24

11 W10534330 Switch, Light Appelez-nous -
12 W10398001 Assembly, Led In-Stock Immediately $ 98.30

13 WPW10544502 Control, Electronic   (Replaces: W10544502) Special Order $ 551.32


    View Diagram in Separate Window     Print Icon   Print Part List

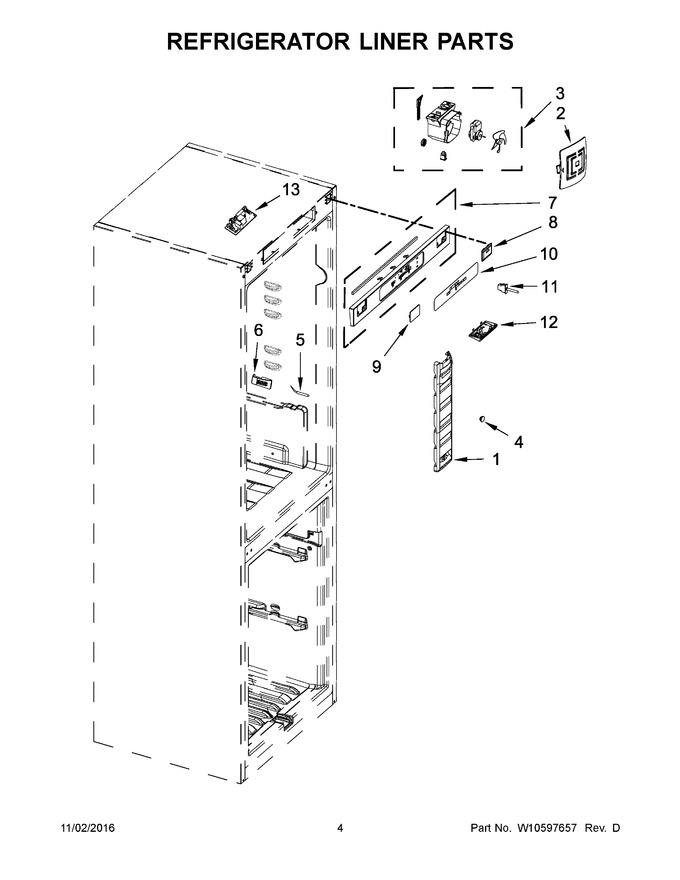

Diagram for KBWG11NCSS00
