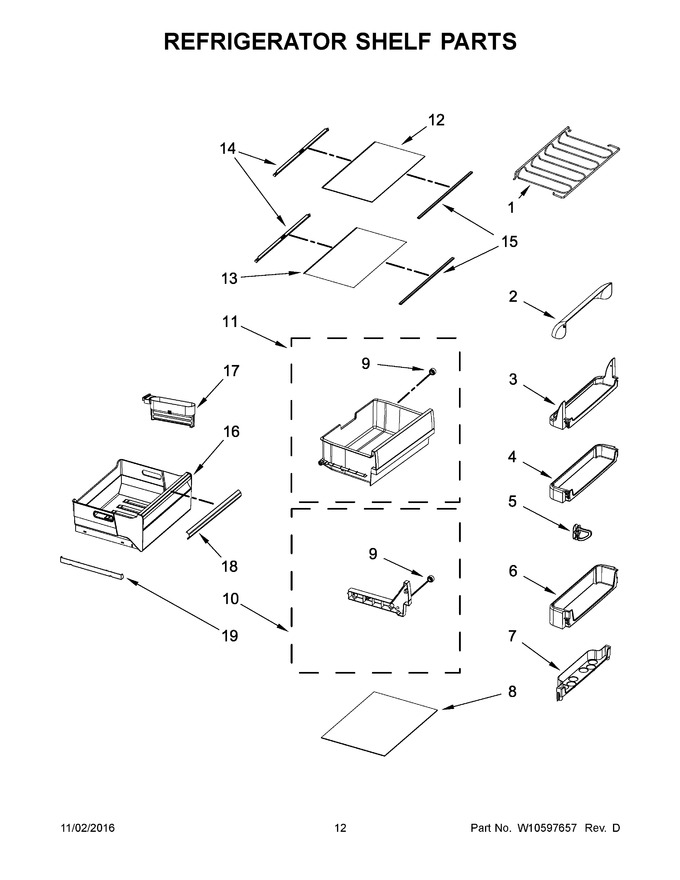

07 - Refrigerator Shelf Parts


08 - Freezer Shelf Parts


09 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10508083		Bottle Rack		Appelez-nous	-
2	W10585766		Lid, Dairy Compartment				$ 18.90
3	W10585762		Dairy Compartment				$ 19.91
4	W10585764		Door Bin				$ 19.50
5	W10585769		Bottle Separator		Appelez-nous	-
6	W10585765		Bottle Bin				$ 27.64
7	W10585789		Egg Bin		Appelez-nous	-
8	W10585784		Crisper Cover				$ 93.16
9	W10585709		Roller		Appelez-nous	-
10	W10506663		Slide (left Hand)		Appelez-nous	-
11	W10515565		Crisper Pan				$ 80.09
12	W10585773		Glass Shelf		Appelez-nous	-
13	W10585780		Glass Shelf		Appelez-nous	-
14	W10585776		Trim, Rear				$ 63.25
15	W10585786		Trim, Front				$ 9.30
16	W10585796		Crisper				$ 87.09
17	W10585771		Divider		Appelez-nous	-
18	W10585793		Trim, Crisper				$ 35.65
19	W10585794		Rail, Side (left Hand)				$ 17.23
10A	W10506668		Slide (right Hand)		Appelez-nous	-
19A	W10585795		Rail, Side (right Hand)				$ 17.23
