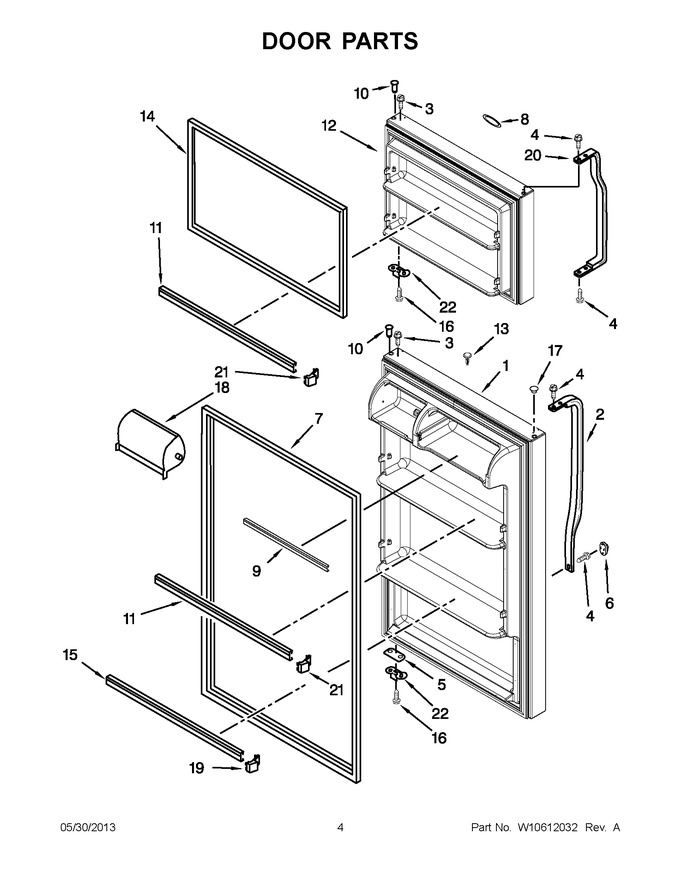

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264750B | Refrigerator Door (includes Items 7 & 10) (black) |
|
- | |||||
| 1 | 2264750W | Refrigerator Door (includes Items 7 & 10) (white) |
|
- | |||||
| 2 | WP2221946W | Handle, Refrigerator (white) (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 2 | WP2326169B | Handle, Refrigerator (black) (Replaces: 2326169B) |
|
$ 154.75 | |||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 8.37 | |||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.55 | ||||
| 5 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 5 | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 6 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 11.43 | |||||
| 6 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 8.14 | ||||
| 7 | WP2319264T | Door Gasket, Magnetic (beige) (Replaces: W10190032) |
|
Immediately | $ 192.71 | ||||
| 7 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 8 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 63.13 | ||||
| 8 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 9 | W11129820 | Trim, Door (Replaces: W10234242) |
|
Immediately | $ 127.34 | ||||
| 10 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 8.14 | |||||
| 11 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 12 | 2263254W | Freezer Door (includes Items 10 & 14) (white) |
|
- | |||||
| 12 | 2263254B | Freezer Door (includes Items 10 & 14) (black) |
|
- | |||||
| 13 | WP2189000 | Plug, Hole (white) (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 13 | WP2189009 | Plug, Hole (black) (Replaces: 2189009) |
|
$ 7.61 | |||||
| 14 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 14 | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: W10190031) |
|
Immediately | $ 169.53 | ||||
| 15 | WP2266738 | Trim, Door (Replaces: 2266738) |
|
$ 111.69 | |||||
| 16 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 17 | WP2212648 | Plug, Hinge (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 17 | WP2212651 | Plug, Hinge (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 18 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 19 | WP2195916K | Endcap, Door Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 20 | 2202098B | Handle, Freezer (black) |
|
$ 151.23 | |||||
| 20 | WP2202098 | Handle, Freezer (white) (Replaces: 2202098) |
|
$ 156.82 | |||||
| 21 | WP2156003 | End Cap, Door Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 22 | W11745278 | Bracket, Door Stop (silver) (Replaces: 2189202) |
|
Immediately | $ 13.37 |
