01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

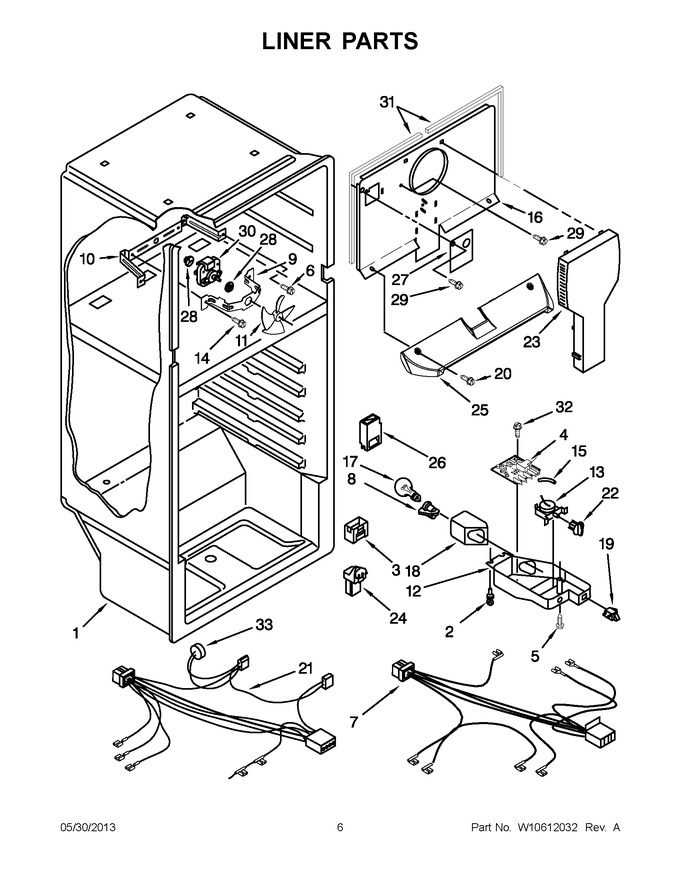

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not Serviced) |
|
- | |||||
| 2 | 939962 | Rivet-plastic |
|
$ 12.42 | |||||
| 3 | 2183061 | Air Diffuser Cover |
|
$ 36.62 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2303825) |
|
Immediately | $ 243.98 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2265930 | Wire Assembly, Control Box |
|
$ 139.61 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | WPW10180172 | Bracket, Fan Support (Replaces: W10180172) |
|
$ 42.28 | |||||
| 10 | 2197405 | Bracket, Fan Mounting |
|
$ 30.23 | |||||
| 11 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 12 | 2215210 | Control Box |
|
$ 128.48 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2325701) |
|
Immediately | $ 180.41 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 15 | WP2196003 | Tube Barrie , Thermostat (Replaces: 1118680) |
|
$ 8.35 | |||||
| 16 | WP2215193 | Cover, Evaporator (Replaces: 2215193) |
|
$ 236.91 | |||||
| 17 | 8009 | Bulb, Light (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 108.92 | ||||
| 19 | W11384469 | Switch, Rocker Arm(ref) (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WP489474 | Screw (Replaces: 2262178) |
|
Immediately | $ 8.55 | ||||
| 21 | W10290502 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 22 | WP2202885 | Knob, Control (Replaces: 2202885) |
|
$ 27.70 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Assembly, Hood & Foil |
|
- | |||||
| 25 | 2261978 | Cover, Air Return, Freezer |
|
$ 135.09 | |||||
| 26 | 2221992 | Air Diffuser Assembly |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217783) |
|
$ 47.22 | |||||
| 28 | WP2264462 | Grommet, Motor (Replaces: 2264462) |
|
Immediately | $ 46.17 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | WPW10188389 | Motor, Fan (Replaces: W10188389) |
|
Immediately | $ 76.83 | ||||
| 31 | W10244016 | Gasket, Evap Cover |
|
- | |||||
| 32 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.95 | |||||
| 33 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 50.77 |
