| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP660658 |
 |
Clamp, Motor (Replaces: 660658) |
|
|
|
$ 8.22 |
|
|
| 2 |
WPW10448901 |
 |
Motor, Main Drive (60 Hz.) (Replaces: W10396037) |
|
|
Immediately |
$ 343.16 |
|
|
| 3 |
8559320 |
|
Clip, Push In (Replaces: 3352501) |
|
|
|
$ 48.14 |
|
|
| 4 |
WP3351614 |
 |
Screw (Replaces: 3351614) |
|
|
Immediately |
$ 7.30 |
|
|
| 5 |
696541 |
|
Base, Motor |
|
|
|
$ 97.86 |
|
|
| 6 |
3390405 |
|
Panel, Rear |
|
Appelez-nous
|
- |
|
|
|
| 7 |
WP681414 |
 |
Screw (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 8 |
WP3394228 |
 |
Cover, Terminal Block (Replaces: 3394228) |
|
|
|
$ 73.50 |
|
|
| 9 |
WP90296 |
 |
Nut, Push On (Replaces: 90296) |
|
|
|
$ 8.24 |
|
|
| 10 |
WP3402293 |
|
Panel, Side (l.h.) (Replaces: 3402293) |
|
|
|
$ 365.33 |
|
|
| 11 |
686770 |
|
Protector Support |
|
Appelez-nous
|
- |
|
|
|
| 12 |
WP681414 |
|
Screw (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 13 |
357030 |
 |
Clamp, Capacitor |
|
|
|
$ 22.14 |
|
|
| 14 |
3399602 |
|
Elbow, Upper |
|
Appelez-nous
|
- |
|
|
|
| 15 |
W10854425 |
 |
Clip, Front Panel (Replaces: 3394083) |
|
|
Immediately |
$ 16.34 |
|
|
| 16 |
WP98234 |
 |
Clip, Ground (Replaces: 98234) |
|
|
Immediately |
$ 11.96 |
|
|
| 17 |
3399603 |
|
Elbow, Lower |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP8572717 |
 |
Capacitor, Motor Start (Replaces: 8572717) |
|
|
Immediately |
$ 97.60 |
|
|
| 19 |
WP3390631 |
 |
Screw (Replaces: 3390631) |
|
|
|
$ 8.25 |
|
|
| 20 |
3394652 |
 |
Belt, Drive (Replaces: 8066064) |
|
|
Immediately |
$ 52.32 |
|
|
| 21 |
8066051 |
|
Pulley, Motor |
|
|
|
$ 118.78 |
|
|
| 22 |
WP691366 |
 |
Assembly, Idler (Replaces: 691366) |
|
|
Immediately |
$ 22.47 |
|
|
| 23 |
WP692771 |
|
Nut, Idler Bracket To Base (Replaces: 692771) |
|
|
|
$ 8.35 |
|
|
| 24 |
3399633 |
|
Base, Dryer |
|
Appelez-nous
|
- |
|
|
|
| 25 |
WP692400 |
 |
Screw Grommet (Replaces: 692400) |
|
|
Immediately |
$ 8.02 |
|
|
| 26 |
WP692926 |
|
Cove, Transition Panel (black) (Replaces: 692926) |
|
|
|
$ 93.68 |
|
|
| 27 |
692933 |
 |
Panel, Transition |
|
|
|
$ 232.21 |
|
|
| 28 |
WP692641 |
|
Top, Dryer (Replaces: 692641) |
|
|
|
$ 270.51 |
|
|
| 29 |
WP3402287 |
|
Panel, Side (r.h.) (Replaces: 3402287) |
|
|
|
$ 366.40 |
|
|
| 30 |
WP693145 |
 |
Latch, Lid (Replaces: 693145) |
|
|
|
$ 89.43 |
|
|
| 31 |
WP692781 |
|
Closure, Control Area (Replaces: 692781) |
|
|
|
$ 185.21 |
|
|
| 32 |
354975 |
|
Screw And Washer (lid Latch Mounting) |
|
Appelez-nous
|
- |
|
|
|
| 33 |
WP693304 |
 |
Screw (Replaces: 693304) |
|
|
|
$ 8.44 |
|
|
| 34 |
WP3393657 |
 |
Restrainer, Belt (Replaces: 3393657) |
|
|
Immediately |
$ 139.08 |
|
|

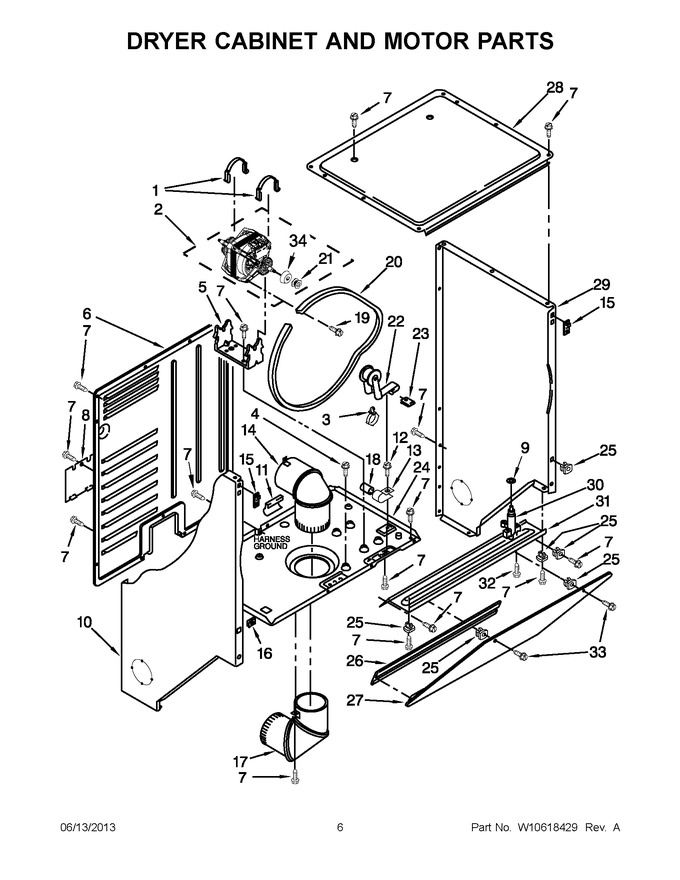

View Diagram in Separate Window
