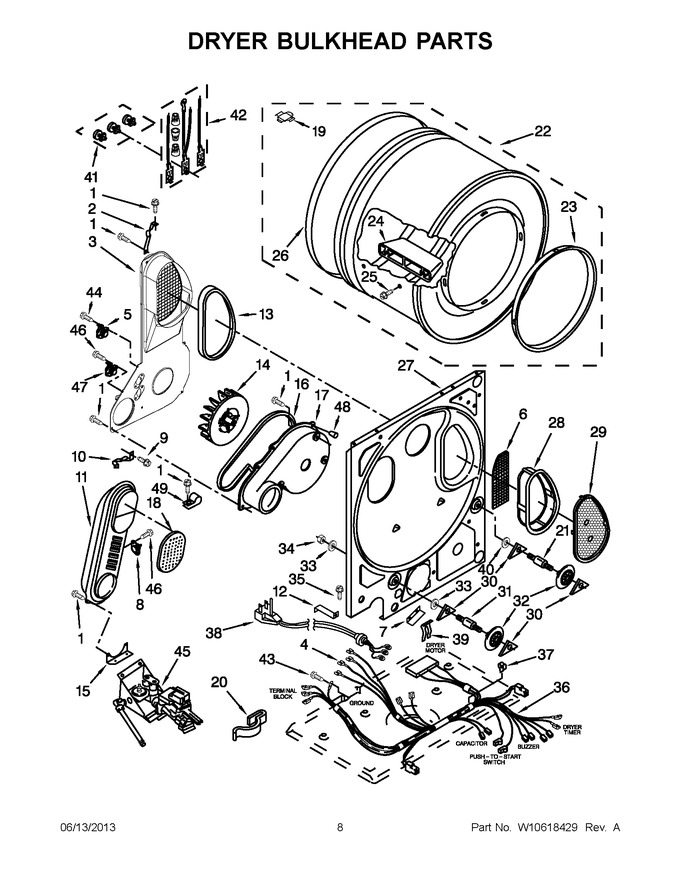

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP681414 |
 |
Screw (Replaces: 343641) |
|
|
Immediately |
$ 8.47 |
|
|
| 2 |
345396 |
|
Clip, Air Duct To Bulkhead (Replaces: 3395396) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
696529 |
|
Air Duct Assembly |
|
|
|
$ 129.26 |
|
|
| 4 |
WP94614 |
 |
Terminal (female) (Replaces: 94614) |
|
|
|
$ 8.05 |
|
|
| 5 |
WP3398128 |
 |
Thermostat, Internal Bias (Replaces: 3398128) |
|
|
Immediately |
$ 139.29 |
|
|
| 6 |
348378 |
|
Screen, Back-up |
|
|
|
$ 38.60 |
|
|
| 7 |
697571 |
|
Guard, Sock |
|
Appelez-nous
|
- |
|
|
|
| 8 |
W11050897 |
 |
Thermostat H.l Spst (180f) (Replaces: W10423382) |
|
|
Immediately |
$ 15.30 |
|
|
| 9 |
WP489463 |
|
Screw (Replaces: 489463) |
|
|
|
$ 8.25 |
|
|
| 10 |
279771 |
|
Clip, Heater Box (Replaces: 3398161) |
|
|
|
$ 15.05 |
|
|
| 11 |
697269 |
|
Heater Box (120/240 Volts) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
3387208 |
|
Support, Corner Gas |
|
Appelez-nous
|
- |
|
|
|
| 13 |
WP339956 |
 |
Seal (Replaces: 339956) |
|
|
Immediately |
$ 9.06 |
|
|
| 14 |
WP696426 |
 |
Wheel, Blower (Replaces: 696426) |
|
|
Immediately |
$ 136.69 |
|
|
| 15 |
347455 |
|
Support, Heater Box |
|
Appelez-nous
|
- |
|
|
|
| 16 |
8066094 |
|
Seal, Fan Scroll |
|
|
|
$ 9.31 |
|
|
| 17 |
WP696418 |
|
Fan Scroll (Replaces: 696418) |
|
|
|
$ 121.99 |
|
|
| 18 |
345335 |
|
Cover, Manifold |
|
|
|
$ 110.25 |
|
|
| 19 |
8066086 |
|
Plug, Drum Hole |
|
|
|
$ 11.29 |
|
|
| 20 |
WP3400935 |
 |
Clip, Wire (Replaces: 3400935) |
|
|
|
$ 10.20 |
|
|
| 21 |
WPW10359269 |
 |
Shaft, Drum Roller - Right Hand Thread (Replaces: W10359269) |
|
|
Immediately |
$ 47.30 |
|
|
| 22 |
3391834 |
 |
Drum Assembly Complete (Replaces: 695943) |
|
|
|
$ 372.51 |
|
|
| 23 |
WP3394508 |
 |
Ring, Bearing (Replaces: 3394508) |
|
|
|
$ 131.86 |
|
|
| 24 |
00685207 |
|
Baffle, Drum (Replaces: 685207) |
|
|
|
$ 326.00 |
|
|
| 25 |
W10853898 |
|
Screw (Replaces: W10219342) |
|
|
Immediately |
$ 8.18 |
|
|
| 26 |
279735 |
 |
Seal, Drum Rear (Replaces: 345648) |
|
|
Immediately |
$ 66.71 |
|
|
| 27 |
697540 |
|
Bulkhead |
|
Appelez-nous
|
- |
|
|
|
| 28 |
W10828351 |
 |
Lint Screen (Replaces: 8531964) |
|
|
Immediately |
$ 56.24 |
|
|
| 29 |
W10828351 |
|
Cover, Lint Screen Outlet (Replaces: 8531967) |
|
|
Immediately |
$ 56.24 |
|
|
| 30 |
WPW10512946 |
 |
Washer, Tri Ring (Replaces: W10512946) |
|
|
Immediately |
$ 8.80 |
|
|
| 31 |
WPW10359270 |
 |
Shaft, Drum Roller - Left Hand Thread (Replaces: W10359270) |
|
|
Immediately |
$ 72.71 |
|
|
| 32 |
349241T |
 |
Roller, Support (Replaces: 3397590) |
|
|
Immediately |
$ 29.53 |
|
|
| 33 |
WP348197 |
 |
Washer (Replaces: 348197) |
|
|
|
$ 7.55 |
|
|
| 34 |
WP3359452 |
 |
Nut, Hex (Replaces: 3359452) |
|
|
Immediately |
$ 7.55 |
|
|
| 35 |
WP3390631 |
 |
Screw (Replaces: 3390631) |
|
|
|
$ 8.25 |
|
|
| 36 |
W10488669 |
|
Harness, Main |
|
Appelez-nous
|
- |
|
|
|
| 37 |
693141 |
|
Clip, Harness |
|
Appelez-nous
|
- |
|
|
|
| 38 |
WPW10581952 |
|
Power Cord (Replaces: W10581952) |
|
|
|
$ 123.69 |
|
|
| 39 |
W11712577 |
 |
Clip, Strain Relief (Replaces: 694415) |
|
|
Immediately |
$ 7.77 |
|
|
| 40 |
WP3388703 |
|
Washer (Replaces: 3388703) |
|
|
|
$ 7.85 |
|
|
| 44 |
WP488729 |
 |
Screw (Replaces: 3390647) |
|
|
Immediately |
$ 8.28 |
|
|
| 45 |
3402856 |
|
Burner Assembly 60 Hz. |
|
Appelez-nous
|
- |
|
|
|
| 46 |
WP90767 |
 |
Screw (Replaces: 90767) |
|
|
Immediately |
$ 8.25 |
|
|
| 47 |
WP3392519 |
 |
Fuse, Thermal (91° C) (Replaces: 3392519) |
|
|
Immediately |
$ 24.95 |
|
|
| 48 |
W10491983 |
|
Cap (Replaces: 359702) |
|
Appelez-nous
|
- |
|
|
|
| 49 |
488946 |
|
Clip, Strain Relief (Replaces: 255563) |
|
|
|
$ 21.47 |
|
|
View Diagram in Separate Window
Print Part List
