SELECT A DIAGRAM

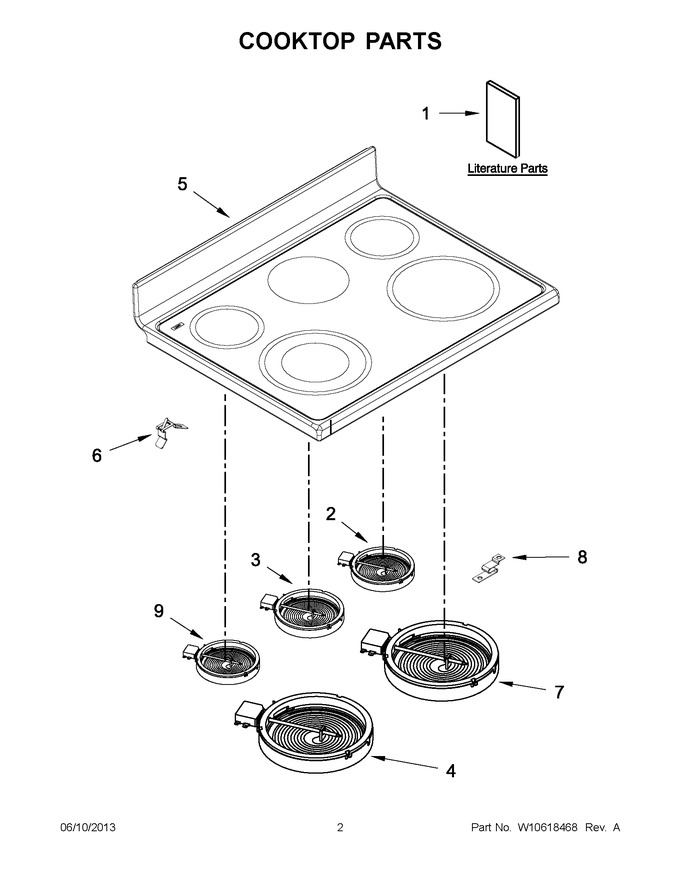

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10575959 | Instructions, Installation |
|
- | |||||
| 1 | W10575957 | Use & Care Guide |
|
- | |||||
| 1 | W10600808 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 3 | WP9762851 | Element, Warm Zone (120v) (center Rear) (Replaces: 9762851) |
|
Immediately | $ 290.36 | ||||
| 4 | WPW10535150 | Element (1000/2000w) (left Front) (Replaces: W10535150) |
|
Immediately | $ 386.10 | ||||
| 5 | W10622125 | Cooktop (white) (Replaces: W10543375) |
|
$ 649.49 | |||||
| 5 | W10622126 | Cooktop (black) (Replaces: W10543376) |
|
Immediately | $ 668.14 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 341.96 | ||||
| 8 | WPW10260946 | Support, Element (Replaces: W10260946) |
|
$ 135.10 | |||||
| 9 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 223.48 |
