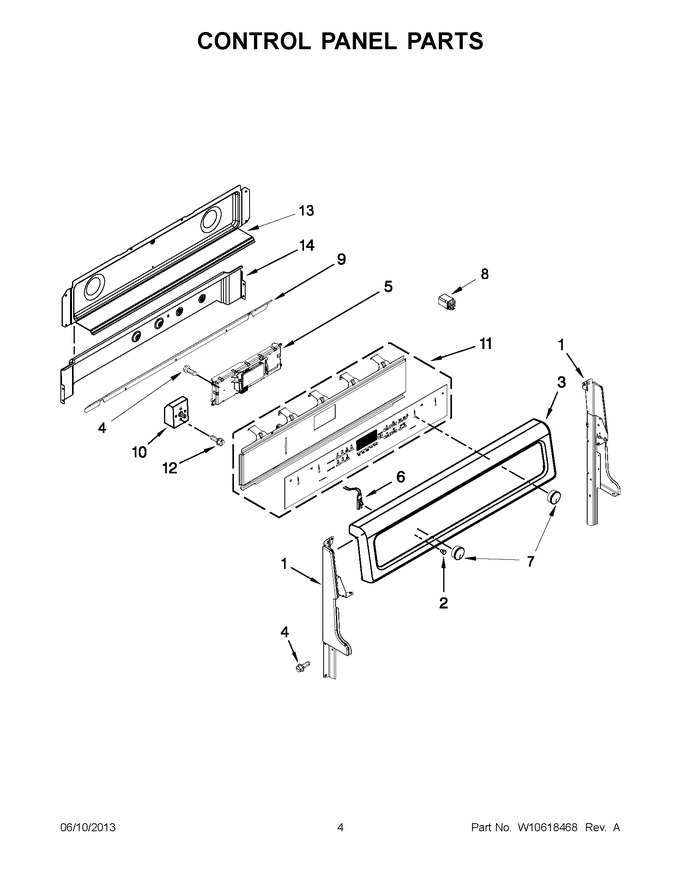

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Internal Oven Parts


05 - Upper Door Parts


06 - Lower Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319110		Support, Backguard (white (left Hand))				$ 95.95
1	W10319109		Support, Backguard (black (left Hand))				$ 92.84
1	W10319112		Support, Backguard (white (right Hand))				$ 93.79
1	W10319111		Support, Backguard (black (right Hand))				$ 43.80
2	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
3	WPW10318552		Console (white)   (Replaces: W10318552)			Immediately	$ 282.47
3	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
4	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
5	WPW10539961		Control, Electric Mrc2   (Replaces: W10539961)				$ 620.71
6	WP74004153		Light, Indicator   (Replaces: 7407P136-60)			Immediately	$ 8.91
7	WPW10437088		Knob (chrome)   (Replaces: W10437088)			Immediately	$ 21.78
8	W10326400		Relay (12v)				$ 70.90
9	WPW10299338		Shield, Wire Cover   (Replaces: W10299338)				$ 96.60
10	WPW10441696		Switch, Infinite (left Front & Right Front)   (Replaces: W10441696)			Immediately	$ 132.72
10	WP7403P238-60		Switch, Infinite (right Rear)   (Replaces: 7403P373-60)			Immediately	$ 74.78
10	WPW10295048		Switch, Infinite (left Rear)   (Replaces: W10295048)			Immediately	$ 159.95
11	W10528783		Assembly, Membrane (including Bracket) (black)				$ 361.67
11	W10528784		Assembly, Membrane (including Bracket) (white)				$ 294.32
12	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
13	W10296773		Cover, Backguard				$ 194.52
14	W10278697		Shield, Vent			Immediately	$ 183.33

    View Diagram in Separate Window       Print Part List
