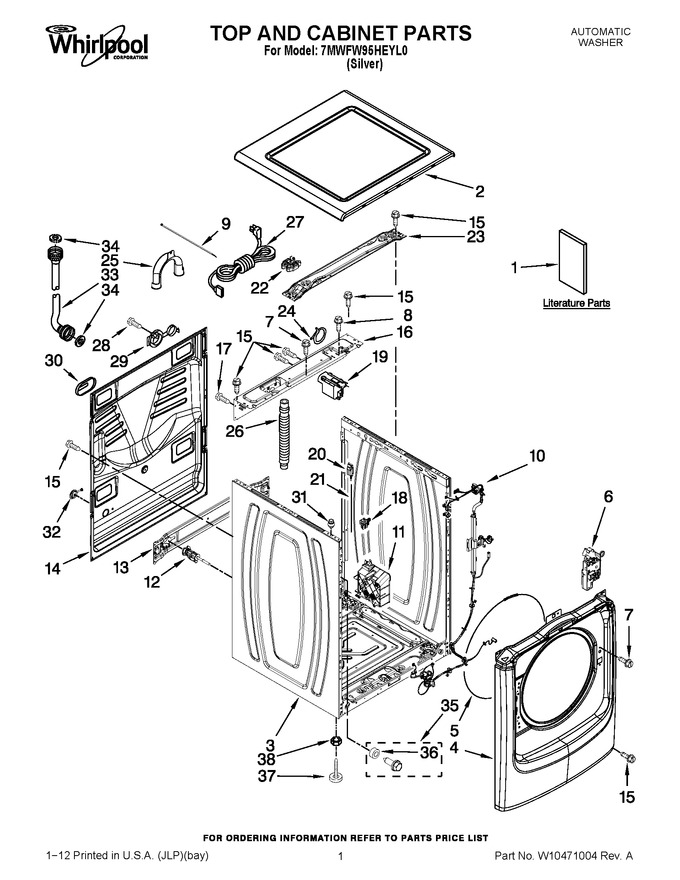

01 - Top And Cabinet Parts
02 - Door Parts
03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10451472 | Energy Guide |
|
- | |||||
| 1 | W10407105 | Use & Care Guide |
|
- | |||||
| 1 | W10407103 | Installation Instructions |
|
- | |||||
| 1 | W10254474 | Tech Sheet |
|
- | |||||
| 2 | WPW10316283 | Top (Replaces: W10316283) |
|
$ 329.20 | |||||
| 3 | W11166598 | Cabinet (Replaces: W10316281) |
|
$ 407.37 | |||||
| 4 | W10316293 | Panel, Front |
|
- | |||||
| 5 | W11266654 | Retainer, Bellow To Front Panel (Replaces: W10237503) |
|
Immediately | $ 24.25 | ||||
| 6 | WP8183270 | Lock,door (Replaces: 8183197) |
|
Immediately | $ 236.21 | ||||
| 7 | WP8540282 | Screw, M4-1.8 X 16 (Replaces: 8540282) |
|
$ 10.93 | |||||
| 8 | 8540329 | Screw, 8-18 X 7/16 |
|
- | |||||
| 9 | WPW10339879 | Cable Tie (Replaces: W10339879) |
|
$ 7.47 | |||||
| 10 | W10432029 | Harness, Wiring (lower Main) |
|
- | |||||
| 11 | WPW10374126 | Motor Control Unit (Replaces: W10374126) |
|
Immediately | $ 328.67 | ||||
| 12 | W10763470 | Bolt, Shipping (set Of 4) (Replaces: W10271590) |
|
$ 89.96 | |||||
| 13 | W10237498 | Brace, Transport |
|
$ 68.84 | |||||
| 14 | W11199206 | Panel, Rear (Replaces: W10237492) |
|
$ 345.54 | |||||
| 15 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 16 | WPW10467483 | Brace, Rear (Replaces: W10354386) |
|
$ 35.70 | |||||
| 17 | W10305097 | Screw, M4.1-1.8 X 57 |
|
- | |||||
| 18 | WPW10181028 | Clip, Pressure Switch Hose (Replaces: W10181028) |
|
$ 17.63 | |||||
| 19 | WPW10367632 | Filter, Interference (Replaces: W10326464) |
|
$ 115.50 | |||||
| 20 | WPW10312527 | Switch, Analog Pressure Sensor (Replaces: W10312527) |
|
$ 301.45 | |||||
| 21 | W11044559 | Hose, Pressure Switch (Replaces: W10251962) |
|
Immediately | $ 30.63 | ||||
| 22 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 9.06 | |||||
| 23 | W10467484 | Brace, Top (Replaces: W10237490) |
|
$ 40.48 | |||||
| 24 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 25 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 26 | W11281268 | Hose, Drain (external) (Replaces: W10267638) |
|
Immediately | $ 19.93 | ||||
| 27 | W11035353 | Cord, Power (Replaces: W10434975) |
|
Immediately | $ 117.95 | ||||
| 28 | WP3351614 | Screw, 10-24 X 3/8 (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 29 | W10854051 | Cover, Power Cord- Transport (Replaces: W10275820) |
|
$ 20.25 | |||||
| 30 | WP8540268 | Cover, Transport (Replaces: 8182700) |
|
$ 6.57 | |||||
| 31 | W10208380 | Screw, Bush Assembly |
|
$ 65.23 | |||||
| 32 | W10304004 | Cover, Power Cord |
|
- | |||||
| 33 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 21.68 | ||||
| 33 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: W10194209) |
|
Immediately | $ 21.68 | ||||
| 34 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 35 | W10298211 | Stud Assembly, Front Panel |
|
- | |||||
| 36 | W10323182 | Spacer, Front Panel |
|
- | |||||
| 37 | WPW10001130 | Foot, Leveling (Replaces: W10001130) |
|
Immediately | $ 7.02 | ||||
| 38 | WP3359452 | Nut, Lock (Replaces: 3359452) |
|
Immediately | $ 6.80 |
