SELECT A DIAGRAM
01 - Top And Cabinet Parts
02 - Door Parts

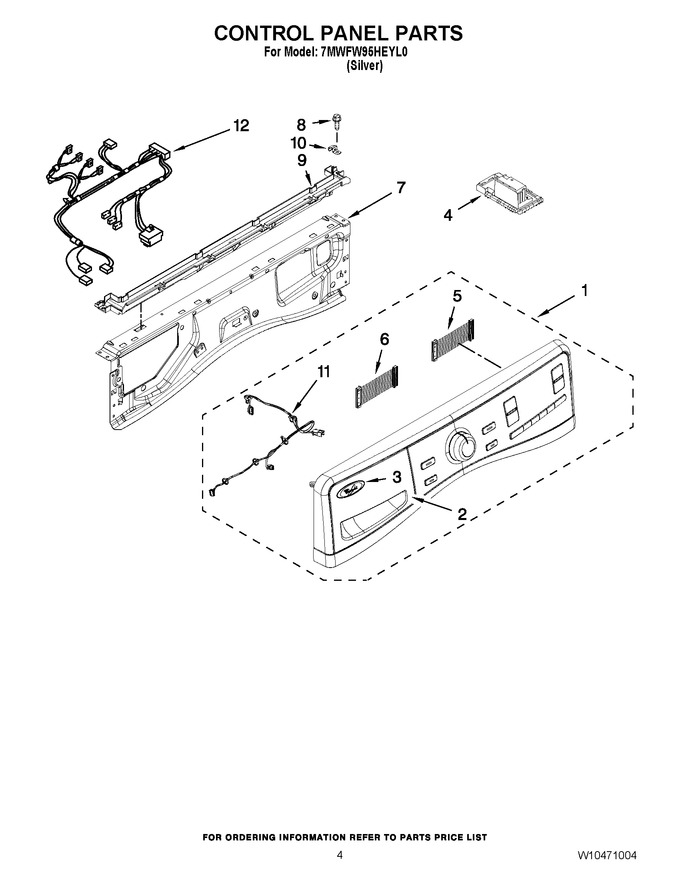

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10369552 | Console Asssembly |
|
- | |||||
| 2 | W10327027 | Handle, Dispenser Drawer (also Shown On Page 5) (includes Item 3) |
|
$ 45.38 | |||||
| 3 | W10117943 | Badge |
|
- | |||||
| 4 | W10410761 | Control Unit, Central |
|
- | |||||
| 5 | W10267937 | Harness, Jumper |
|
- | |||||
| 6 | W10267938 | Harness, Ui Jumper |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (includes Item 10) (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | W10271988 | Harness, Main Ui |
|
$ 241.44 | |||||
| 12 | W10271980 | Harness, Wiring (upper Main) |
|
$ 248.03 |
