SELECT A DIAGRAM

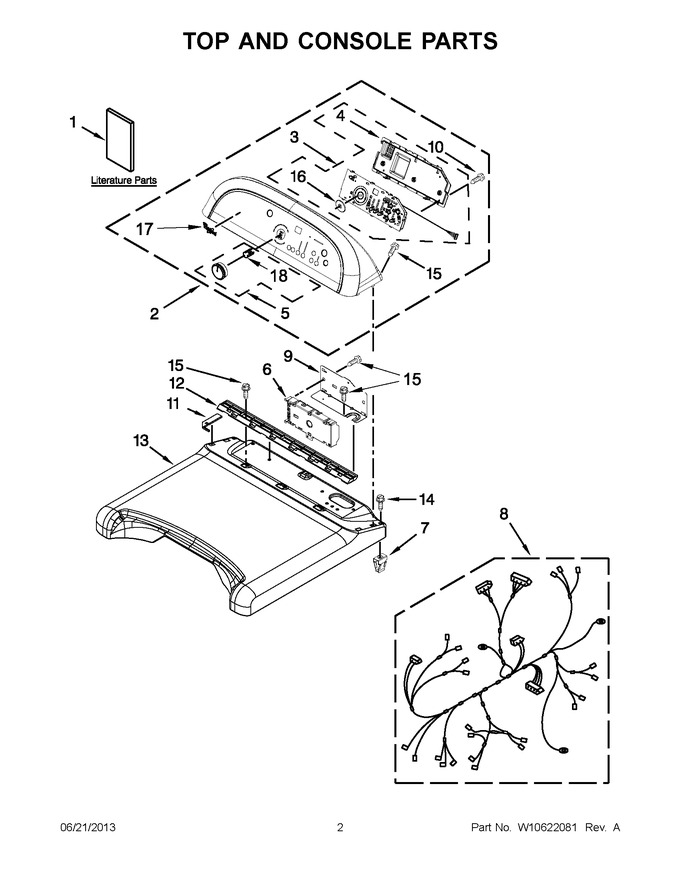

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562333		Guide, Use And Care		Appelez-nous	-
1	W10562336		Instructions, Installation		Appelez-nous	-
1	W10393445		Wiring Diagram		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
2	W10562305		Console Assembly (white)				$ 377.72
3	WPW10566876		User Interface   (Replaces: W10566876)				$ 283.50
4	8564265		Cover, Rear (user Interface)				$ 135.81
5	WPW10576632		Assembly, Control Knob (gray)   (Replaces: W10576632)				$ 53.39
6	WPW10532427		Control, Electronic   (Replaces: W10532427)				$ 326.15
7	W10112673		Clip, Console				$ 9.29
8	W10393458		Main Harness		Appelez-nous	-
9	W10211337		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.49
11	W10185554		Foam, Top		Appelez-nous	-
12	8558863		Bracket, Console				$ 33.78
13	W10211339		Top (white)		Appelez-nous	-
14	W10131402		Screw		Appelez-nous	-
15	WP33001882		Screw   (Replaces: 337686)				$ 79.72
16	8572039		Seal, User Interface		Appelez-nous	-
17	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 64.51
18	W10303825		Spring, Clip Knob		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
