SELECT A DIAGRAM

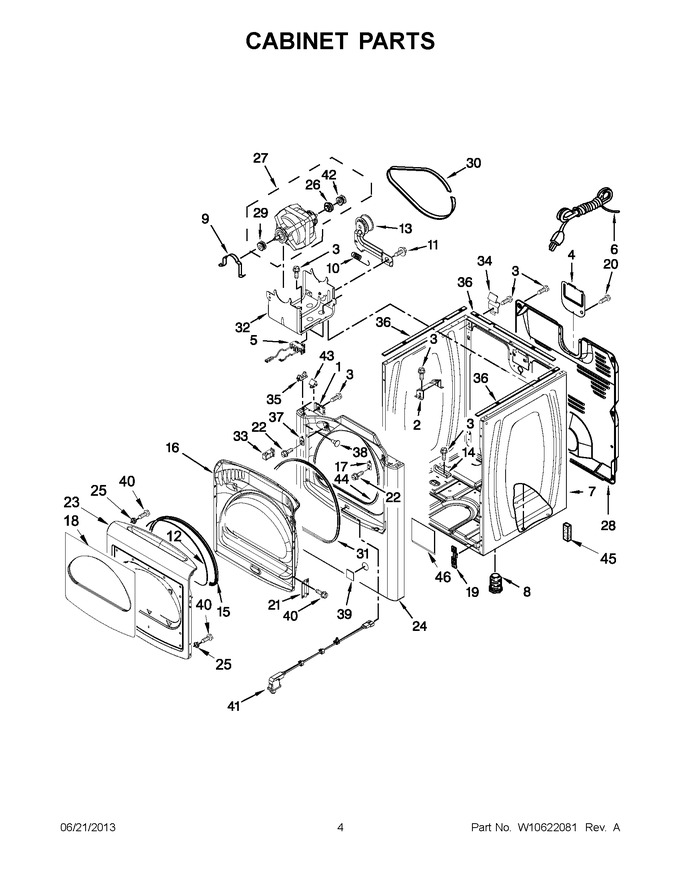

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8557891 Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
2	8544753		Bracket, Burner Support		Appelez-nous	-
3	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
4	W11736322		Plate, Cover Terminal Block   (Replaces: 8558833)		Appelez-nous	-
5	WPW10411937		Switch, Broken Belt   (Replaces: W10411937)			Immediately	$ 34.34
6	W11222083		Cord, Power   (Replaces: W10440460)				$ 120.59
7	W10564793		Cabinet (white)				$ 283.86
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 24.57
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.02
12	8558846		Glass, Inner Door				$ 120.50
13	WPW10547292		Assembly, Idler   (Replaces: W10547292)			Immediately	$ 43.98
14	W10201446		Bracket, Gas Pipe		Appelez-nous	-
15	W10076050		Seal, Window				$ 115.86
16	8571357		Door, Inner				$ 143.15
17	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 28.28
18	8578931		Window, Outer Door				$ 164.08
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
20	W10850756		Screw   (Replaces: 8533974)				$ 7.76
21	WP8565018		Hinge, Spring Assembly (white)   (Replaces: 8565018)				$ 109.85
22	WP3400805		Screw   (Replaces: 3400805)				$ 7.19
23	8571365		Door, Outer (white)				$ 70.67
24	W10594754		Panel, Front (white)		Appelez-nous	-
25	WP308499		Palnut   (Replaces: 308499)				$ 6.95
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 132.46
27	WPW10448896		Assembly, Motor (60 Hertz)   (Replaces: W10396036)			Immediately	$ 326.75
28	8558830		Panel, Rear				$ 139.44
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 65.46
31	W10239307		Seal, Door   (Replaces: W10221653)				$ 134.54
32	8547158		Bracket, Motor				$ 65.31
33	WPW10111905		Assembly, Door Catch   (Replaces: W10111905)			Immediately	$ 7.59
34	WP8066217		Hinge, Top   (Replaces: 238088)				$ 7.82
35	WP8568303		Locator, Snap-down   (Replaces: 8568303)				$ 7.56
36	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.05
37	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 109.61
38	W10144494		Plug, Hole				$ 35.14
39	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 15.71
40	WP488627		Screw   (Replaces: 342055)				$ 7.57
41	WPW10350907		Assembly, Door Switch   (Replaces: W10350907)				$ 85.87
42	WP8547171		Pulley, Motor   (Replaces: 8547171)				$ 142.53
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 7.60
44	W10044490		Seal, Front Panel				$ 32.43
45	3350013		Foam		Appelez-nous	-
46	W10123956		Panel, Dampening		Appelez-nous	-
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
