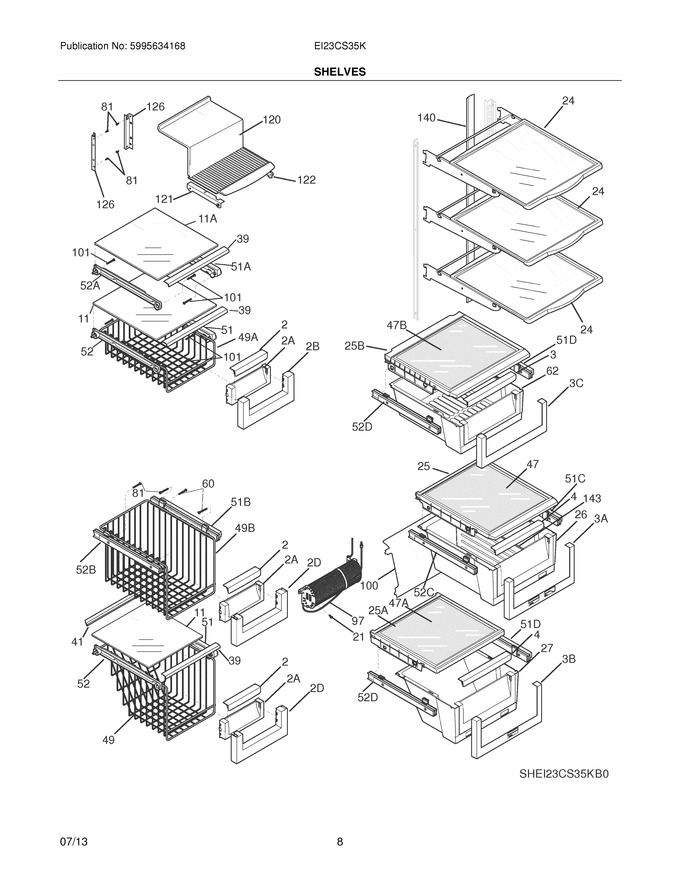

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241741301		Trim-basket				$ 62.21
3	241745301		Handle-crisper Pan,silver				$ 74.81
4	241950801		Handle-crisper Pan,silver				$ 58.59
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 96.06
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240350159		Shelf-``spill-safe``,cantilever ,sliding		Appelez-nous	-
25	241745502		Cover-crisper Pan,upper		Appelez-nous	-
26	241745604		Pan-crisper,upper ,w/divi Retainer		Appelez-nous	-
27	241950502		Pan-crisper,lower				$ 255.15
39	240367603		Trim-shelf,11.65`` ,front				$ 82.69
41	241571201		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	241744201		Basket-sliding				$ 170.05
51	241799801		Hanger-shelf Glass,rh				$ 65.36
52	241799901		Hanger-shelf Glass,lh				$ 82.58
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 13.39
62	241783502		Pan-meat				$ 212.44
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	241532006		Water Tank				$ 144.90
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
120	241691701		Shelf-ice Cream				$ 82.69
121	241504701		Rail-ice Cream Shelf,lh				$ 71.66
122	241504702		Rail-ice Cream Shelf,rh				$ 83.42
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	241812502		Channel,wtr Tube Cover				$ 76.97
143	241746001		Divider-crisper Pan				$ 51.50
11A	240443358		Shelf-freezer,glass ,upper				$ 107.86
25A	241747102		Cover-crisper Pan,lower				$ 99.49
25B	241861501		Cover-meat Pan,cantilever				$ 81.90
2A	241741601		Trim-basket,front				$ 45.68
2B	241742101		Front-frzr Basket				$ 33.18
2D	241742102		Trim-basket		Appelez-nous	-
3A	5303918369		Trim-crisper,w/hum Cntl&btn				$ 92.45
3B	5303918370		Trim-crisper,w/hum Cntl&btn				$ 83.27
3C	241748601		Trim-meat Pan				$ 29.07
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
47B	240443380		Insert-pan Cover,glass ,meat Pan				$ 103.65
49A	241742201		Basket-sliding,upper ,half		Appelez-nous	-
49B	241744001		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 70.88
51B	241809101		Hanger-basket,rh				$ 208.69
51C	240579821		Hanger-basket,13.00 ,rh			Immediately	$ 139.39
51D	240579822		Hanger-basket,10.19 ,rh				$ 113.40
52A	241514801		Hanger-shelf Glass,lh				$ 381.94
52B	241809102		Hanger-basket,lh				$ 175.61
52C	240579819		Hanger-basket,13.00 ,lh				$ 125.55
52D	240579820		Hanger-basket,10.19 ,lh				$ 111.83
F51B	297049500		Clip-slide,basket			Immediately	$ 22.84
F51C	242245101		Clip-slide,pan-crisper ,front		Appelez-nous	-
F51C	241563901		Clip-slide,pan-crisper ,rear				$ 35.81
NI	242146203		Label-energyguide,energy Guide		Appelez-nous	-
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 11.81
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
