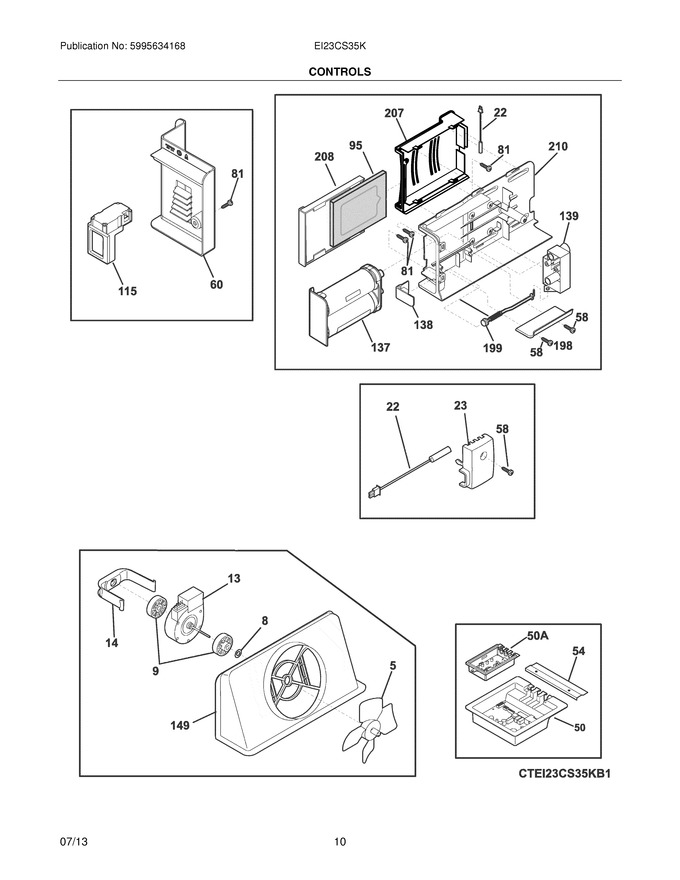

11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 20.48
9	241518301		Bushing,motor Mounting				$ 74.03
14	242135301		Clip,evap Fan Motor ,evap Fan Motor				$ 8.66
22	240597220		Sensor,temperature ,10k ,ntc   (Replaces: 240597203)			Immediately	$ 5.73
23	241845401		Housing-sensor		Appelez-nous	-
54	241532401		Channel				$ 33.86
58	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 18.90
60	242153901		Diffuser-air		Appelez-nous	-
81	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
115	241853801		Damper Assy,w/seal				$ 174.83
138	241754602		Button-filter Release				$ 35.28
139	240396002		Base-water Filter			Immediately	$ 132.95
149	242204504		Shroud-evap Fan Mtg   (Replaces: 241517601)				$ 42.98
198	241754801		Support,water Filter		Appelez-nous	-
199	240397501		Rod				$ 55.57
207	242154001		Housing-air Filter		Appelez-nous	-
208	241754302		Sleeve,air Filter ,silver ,front				$ 51.46
210	241755203		Housing-water Filtr		Appelez-nous	-
F13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 171.27
F137	242175101		Filter-water,water ,carbon Cassette ,front,with O`rings		Appelez-nous	-
F137	242227701		Bypass,water Filter ,optional Part   (Replaces: 241944301)				$ 92.93
F149	241528304		Seal,foam ,evap Fan Assy		Appelez-nous	-
F199	240398401		Spring-filter Release Rod				$ 65.73
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 54.48
F50	5304499463		Board-main Power   (Replaces: 242115221)				$ 318.52
F50A	241852501		Clip,wiring Harness				$ 17.33
F50A	241891603		Board-led Power .		Appelez-nous	-
F95	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 30.71
NI	242036802		Clip,plastic		Appelez-nous	-
NI	241852502		Clip,retainer ,harness		Appelez-nous	-
NI	242156301		Insulation-air Duct		Appelez-nous	-
