SELECT A DIAGRAM

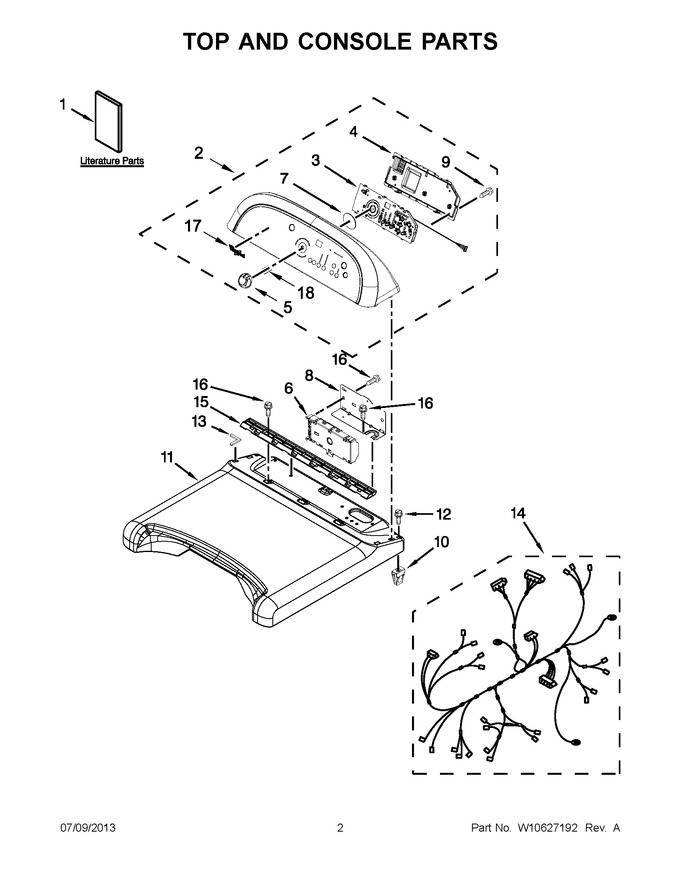

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562336		Instructions, Installation		Appelez-nous	-
1	W10403269		Tech Sheet		Appelez-nous	-
1	W10393447		Wiring Diagram		Appelez-nous	-
1	W10562333		Guide, Use And Care		Appelez-nous	-
2	W10562305		Console (white)				$ 377.72
3	WPW10566876		User Interface   (Replaces: W10566876)				$ 267.91
4	8564265		Cover, Rear- User Interface				$ 128.34
5	WPW10576632		Assembly, Timer Knob (grey)   (Replaces: W10576632)				$ 50.45
6	WPW10532428		Control, Electronic   (Replaces: W10532428)				$ 344.35
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10211337		Bracket, Machine Controller		Appelez-nous	-
9	WP4449745		Screw   (Replaces: W10003770)				$ 7.18
10	W10112673		Clip, Console				$ 8.78
11	W10613794		Top (white)				$ 143.99
12	W10131402		Screw		Appelez-nous	-
13	W10185554		Foam, Top		Appelez-nous	-
14	W10393456		Harness, Main				$ 97.52
15	8558863		Bracket, Console				$ 33.78
16	WP33001882		Screw   (Replaces: 337686)				$ 75.34
17	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 60.97
18	W10303825		Spring, Clip Knob		Appelez-nous	-
