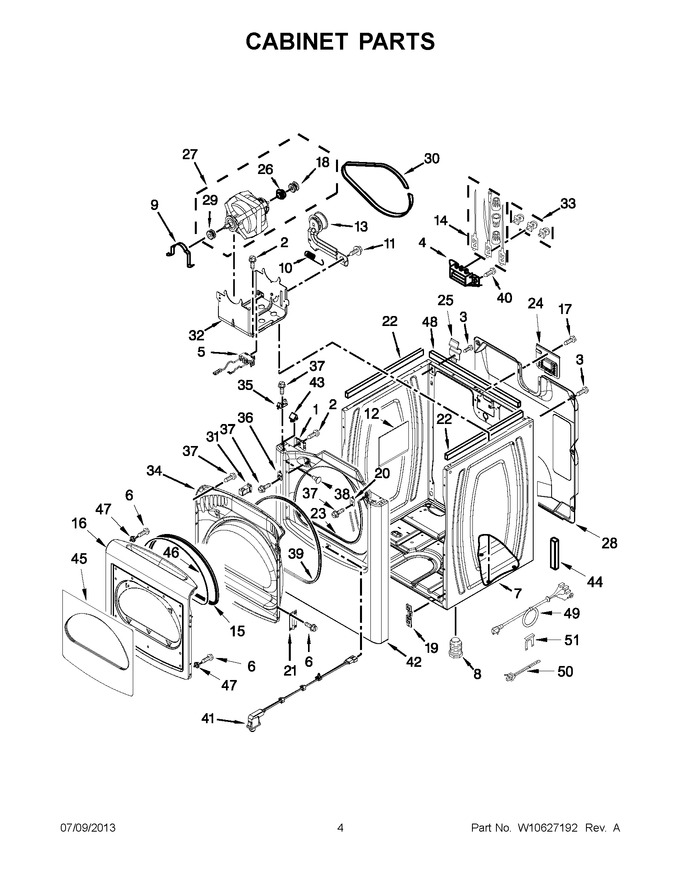

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 10.76
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.43
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
5	WPW10411937		Switch, Broken Belt   (Replaces: W10411937)			Immediately	$ 32.45
6	WP488627		Screw   (Replaces: 342055)				$ 7.30
7	W10564793		Cabinet (white)				$ 283.86
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 22.22
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W10123956		Panel, Dampening		Appelez-nous	-
13	WPW10547292		Assembly, Idler   (Replaces: W10547292)			Immediately	$ 39.58
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
15	W10076050		Seal, Window				$ 109.49
16	8571365		Door, Outer (white)				$ 70.67
17	W10850756		Screw   (Replaces: 8533974)				$ 7.38
18	WP8547171		Pulley, Motor   (Replaces: 8547171)				$ 134.69
19	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 14.71
20	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 26.72
21	WP8565018		Hinge, Spring Assembly (white)   (Replaces: 8565018)				$ 103.81
22	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 7.61
23	W10044490		Seal, Front Panel				$ 30.65
24	W10110241		Cover, Terminal Block				$ 43.62
25	WP8066217		Hinge, Top   (Replaces: 238088)				$ 7.39
26	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
27	WPW10448896		Assembly, Motor (60 Hertz)   (Replaces: W10396036)			Immediately	$ 308.78
28	8558830		Panel, Rear				$ 139.44
29	8544743		Pulley, Blower				$ 74.26
30	WP8547157		Belt, Drive   (Replaces: 8547157)			Immediately	$ 58.91
31	WPW10111905		Assembly, Door Catch   (Replaces: W10111905)			Immediately	$ 6.83
32	8547158		Bracket, Motor				$ 65.31
33	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
34	8571357		Door, Inner				$ 143.15
35	WP8568303		Locator, Snap Down   (Replaces: 8568303)				$ 7.15
36	W10295405		Assembly, Strike & Plate   (Replaces: W10111906)				$ 103.58
37	WP3400805		Screw   (Replaces: 3400805)				$ 6.80
38	W10144494		Plug, Hole				$ 35.14
39	W10239307		Seal, Door   (Replaces: W10221653)				$ 127.14
40	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
41	WPW10350907		Assembly, Door Switch   (Replaces: W10350907)				$ 81.14
42	W10594753		Panel, Front (white)				$ 163.46
43	WP8576625		Lock, Top Front   (Replaces: 8576625)				$ 6.84
44	3350013		Foam		Appelez-nous	-
45	8578931		Window, Outer Door				$ 164.08
46	8558846		Glass, Inner Door				$ 120.50
47	WP308499		Palnut   (Replaces: 308499)				$ 6.57
48	WPW10224768		Seal-spill Guard   (Replaces: W10224768)				$ 68.12
49	W11095079		Cord, Power   (Replaces: 8529008)			Immediately	$ 124.42
50	3405248		Tie, Cable		Appelez-nous	-
51	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
