SELECT A DIAGRAM

01 - Cover Sheet

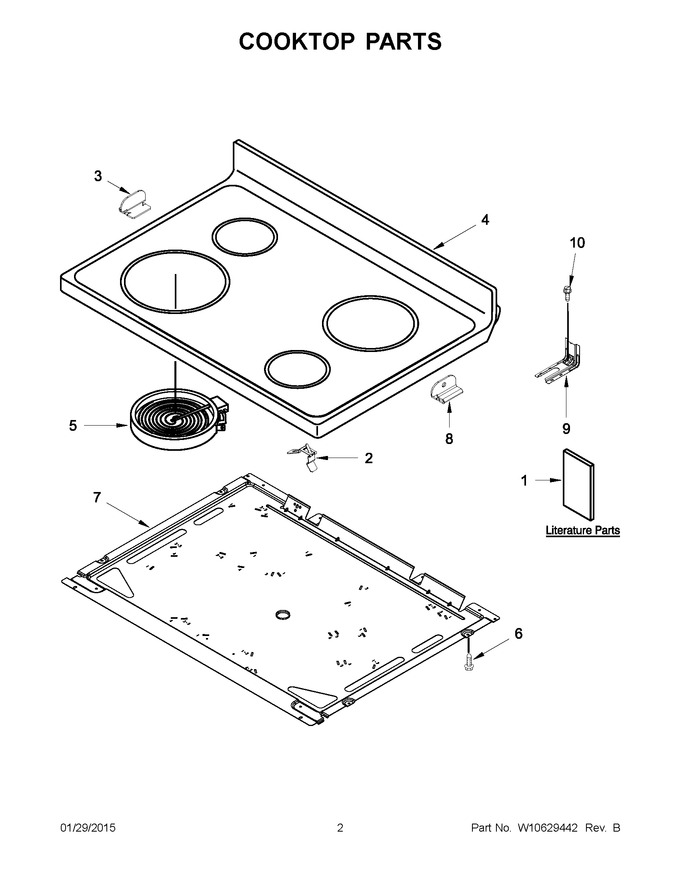

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Drawer Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10572534		User Instructions		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	WPW10254671		Cooktop (white)   (Replaces: W10202166)				$ 715.27
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10169799)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
9	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
10	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10432689		Tech Sheet (english)		Appelez-nous	-
1B	W10403811		Instructions, Installation		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
4A	W10636386		Cooktop (black)   (Replaces: W10572575)				$ 713.04
5A	W10823711		Element (1200w) (right Front And Left Rear)   (Replaces: 8523698)			Immediately	$ 204.39
5B	W10823698		Element (1800w) (right Rear)   (Replaces: 8523696)			Immediately	$ 195.12
NI	W10744211		Harness, Cooktop (left)   (Replaces: W10349708)				$ 182.74
NI	W10273584		Harness, Wire (cooktop Right)				$ 134.76
NI	W11172524		Harness, Sensor   (Replaces: W10084660)				$ 217.19
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10846089		Harness, Main   (Replaces: W10349709)		Appelez-nous	-
