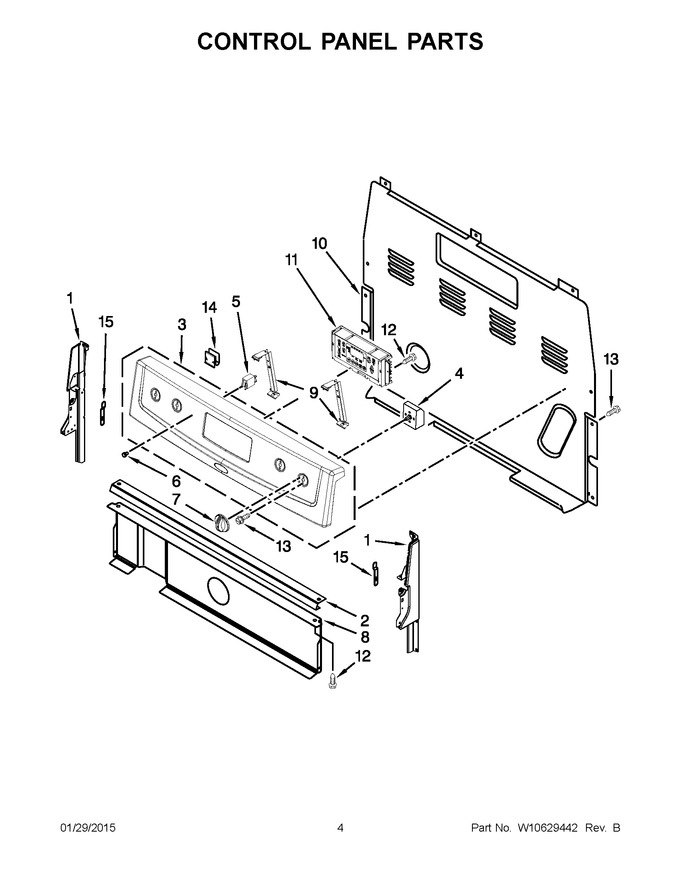

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Drawer Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
2	W10525121		Bracket, Console Mounting				$ 98.85
3	W10572572		Panel, Control (white)		Appelez-nous	-
4	5500-287		Switch, Infinite (right Front And Left Rear)   (Replaces: 3148951)			Immediately	$ 52.39
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 20.65
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	WPW10572540		Control, Electronic (white)   (Replaces: W10626965)				$ 366.59
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
14	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
15	3196200		Clip, Spring				$ 10.45
11A	WPW10626966		Control, Electronic (black)   (Replaces: W10626966)				$ 328.04
1A	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1B	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
1C	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
3A	W10572574		Panel, Control (black)		Appelez-nous	-
3B	WPW10572577		Panel, Control (stainless)   (Replaces: W10572577)				$ 334.65
4A	5500-287		Switch, Infinite (right Rear)   (Replaces: 3148953)			Immediately	$ 52.39
4B	WPW10434452		Switch, Infinite (left Front)   (Replaces: W10434452)			Immediately	$ 140.84
7A	WP9761964		Knob, Infinite (black)   (Replaces: 9761964)			Immediately	$ 22.30
