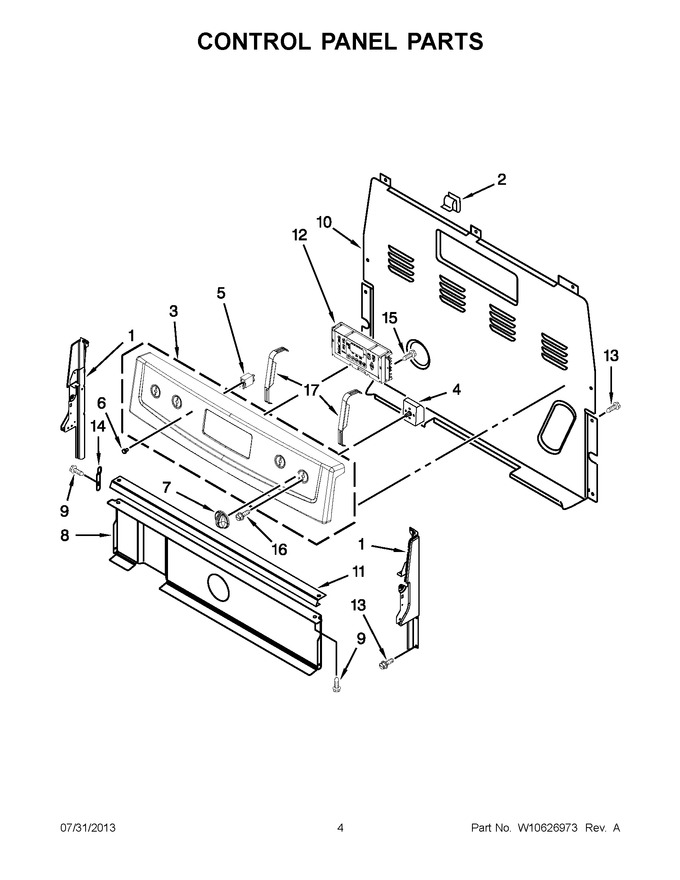

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer And Broiler Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
2	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
3	W10572560		Panel, Control (white)		Appelez-nous	-
3	W10572562		Panel, Control (black)		Appelez-nous	-
4	5500-287		Switch, Infinite (left Front & Right Rear)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (right Front & Left Rear)   (Replaces: 3148953)			Immediately	$ 52.39
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
6	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
7	WP9761964		Knob, Infinite (black)   (Replaces: 9761964)			Immediately	$ 22.30
7	WP9761962		Knob, Infinite (white)   (Replaces: 9761962)			Immediately	$ 20.65
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	WPW10572536		Control (lcc95) (black)   (Replaces: W10572536)				$ 379.60
12	WPW10572536		Control (lcc95) (white)   (Replaces: W10572535)				$ 379.60
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	3196200		Clip, Spring				$ 10.45
15	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	W11230932		Bracket, Control   (Replaces: W10324410)			Immediately	$ 84.81
