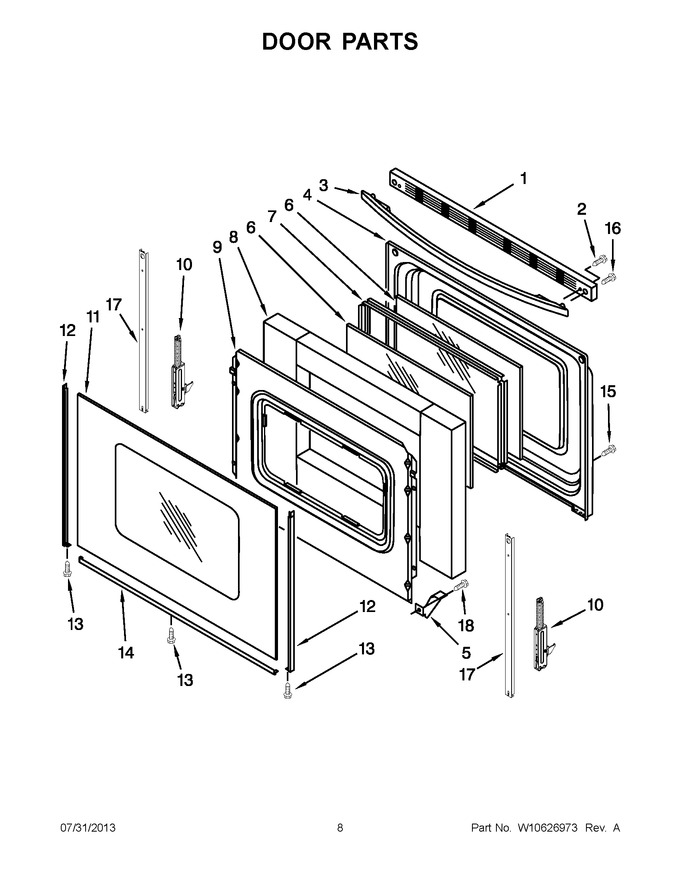

04 - Door Parts
05 - Drawer And Broiler Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 175.37 | ||||
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 103.27 | ||||
| 2 | WP3196164 | Screw (Replaces: 3196164) |
|
Immediately | $ 11.03 | ||||
| 3 | W10817434 | Handle, Door (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 3 | WPW10144883 | Handle, Door (stainless) (Replaces: W10144883) |
|
$ 252.66 | |||||
| 3 | WPW10323589 | Handle, Door (black) (Replaces: W10323589) |
|
Immediately | $ 238.78 | ||||
| 4 | 9761340 | Liner-door |
|
$ 361.12 | |||||
| 5 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 6 | WP9758164 | Glass, Inner (Replaces: 9758164) |
|
$ 159.93 | |||||
| 7 | W10316951 | Frame, Window (glass) |
|
- | |||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | 9761499 | Retainer, Insulation |
|
$ 325.33 | |||||
| 10 | WPW10299224 | Hinge, Door Active (Replaces: W10299224) |
|
Immediately | $ 73.47 | ||||
| 10 | WPW10299227 | Hinge, Door Passive (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 11 | WP9762477 | Glass, Outer (black) (Replaces: 9762477) |
|
$ 330.12 | |||||
| 11 | WP9762476 | Glass, Outer (white) (Replaces: 9762476) |
|
$ 332.66 | |||||
| 12 | W10761014 | Trim, Side (black, Right Hand) (Replaces: 8523165) |
|
Immediately | $ 72.96 | ||||
| 12 | WP8523172 | Trim, Side (white, Left Hand) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 12 | WP8523166 | Trim, Side (white, Right Hand) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 12 | W10761018 | Trim, Side (black, Left Hand) (Replaces: 8523171) |
|
Immediately | $ 53.77 | ||||
| 13 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 7.55 | ||||
| 14 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 61.37 | ||||
| 14 | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
Immediately | $ 165.86 | ||||
| 15 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 16 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 17 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 27.68 | ||||
| 18 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 |
