SELECT A DIAGRAM

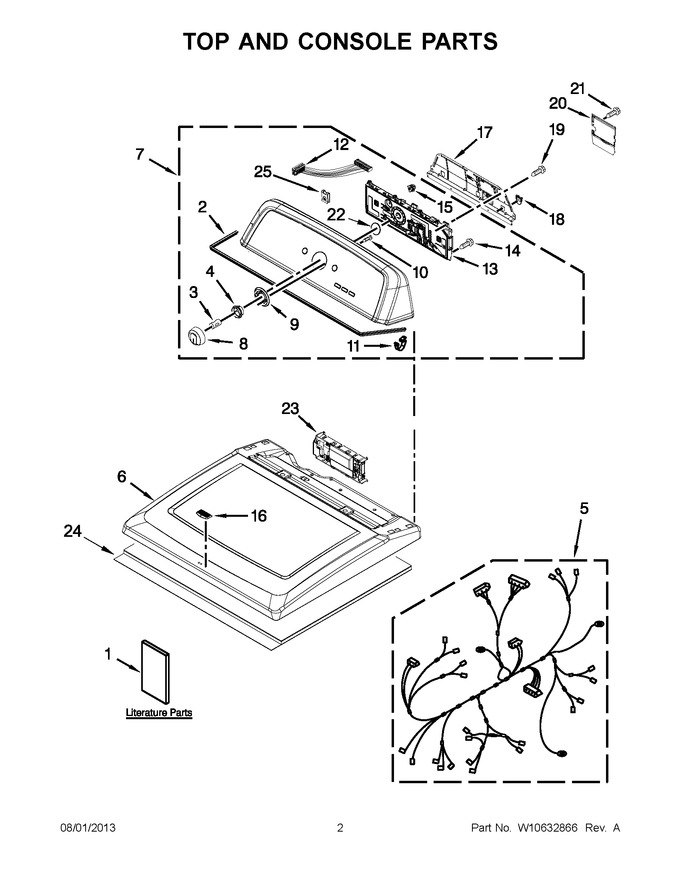

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - 8576353 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514185		Installation Instructions		Appelez-nous	-
1	W10287249		Wiring Diagram		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
1	W10096989		Use And Care Guide		Appelez-nous	-
2	W10280079		Seal, Console		Appelez-nous	-
3	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
4	W10326923		Spacer, Knob		Appelez-nous	-
5	W10287253		Harness, Wiring (main)		Appelez-nous	-
6	W10459652		Top (cosmetallic)				$ 94.27
7	W10459653		Panel, Console (cosmetallic)				$ 343.38
8	WPW10251384		Knob Assembly (chrome)   (Replaces: W10251384)				$ 64.58
9	W10305134		Bezel, Cycle Trim				$ 26.37
10	3196172		Screw			Immediately	$ 13.47
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
12	W10285494		Cable, User Interface		Appelez-nous	-
13	WPW10272644		Assembly, User Interface   (Replaces: W10272644)				$ 313.89
14	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
15	W10274524		Tensioner, Fascia		Appelez-nous	-
16	W10492808		Badge				$ 59.82
17	W10550615		Panel, Rear Console				$ 116.83
18	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
19	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	W10850756		Screw   (Replaces: 8533974)				$ 8.20
22	W10323092		Seal, User Interface		Appelez-nous	-
23	WPW10214009		Control, Electronic   (Replaces: W10214009)				$ 395.99
24	W10123956		Panel, Dampening		Appelez-nous	-
25	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13

    View Diagram in Separate Window       Print Part List
