01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Door Parts
05 - 8576353 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

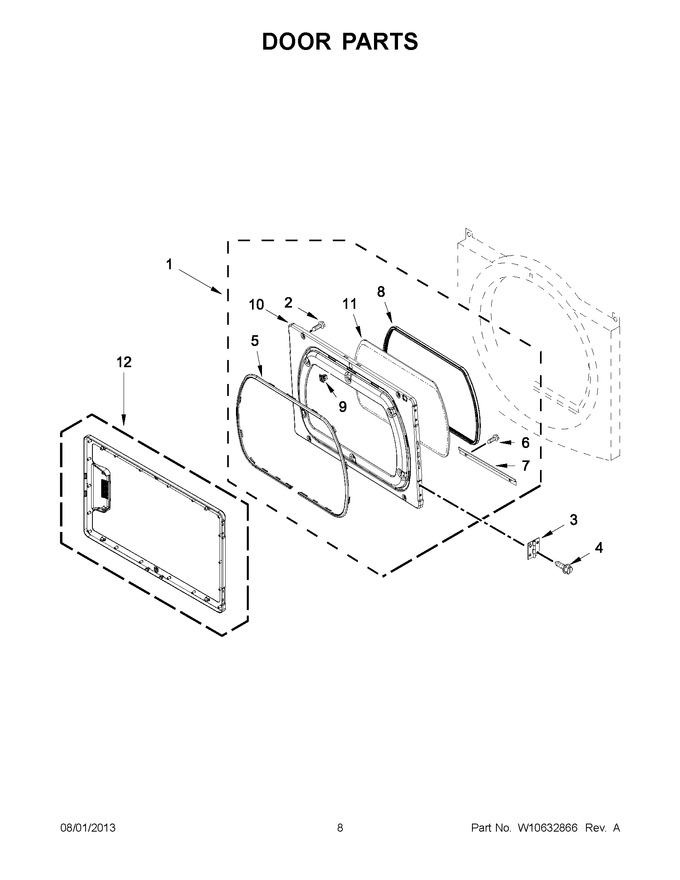

| 1 | W11652037 | Assembly, Inner Door (Replaces: W10513690) |
|
$ 208.90 | |||||
| 2 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 3 | WPW10279703 | Assembly, Hinge & Pin (silver) (Replaces: W10279703) |
|
$ 75.83 | |||||
| 4 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 5 | WPW10354795 | Seal-door (Replaces: W10354795) |
|
$ 130.12 | |||||
| 6 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 7 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 8 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 9 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 10 | W10822056 | Door, Inner (Replaces: W10470571) |
|
$ 219.14 | |||||
| 11 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 263.61 | |||||
| 12 | W10461891 | Door, Outer (cosmetallic) |
|
$ 358.34 |
