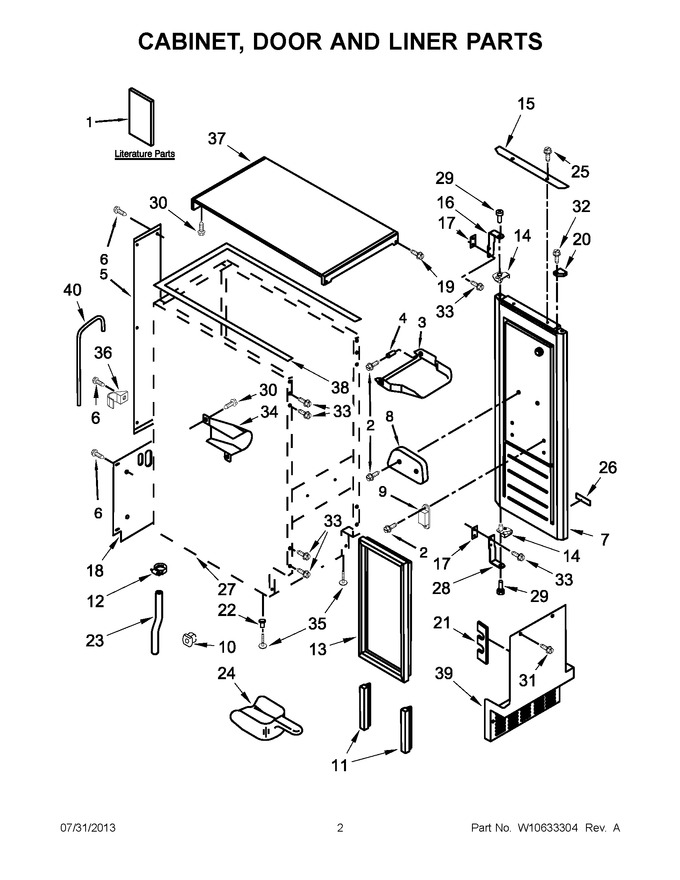

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541636 | Instructions, Installation |
|
- | |||||
| 1 | W10492485 | Tech Sheet |
|
- | |||||
| 1 | W10541614 | Use & Care Guide |
|
- | |||||
| 2 | 3400886 | Screw (stainless) |
|
$ 5.65 | |||||
| 3 | 2185742 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 11.03 | |||||
| 5 | 2217394 | Cover, Wiring |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | W10517693Q | Door (stainless) (Replaces: W10517693) |
|
- | |||||
| 8 | W10486874 | Cam-door |
|
- | |||||
| 9 | W11223751 | Assembly, Magnetic Catch (Replaces: W10529250) |
|
$ 62.40 | |||||
| 10 | W10136999 | Nut, Push-in |
|
- | |||||
| 11 | 2217367 | Gasket, Bottom |
|
- | |||||
| 12 | WP489503 | Clamp, Hose (Replaces: 489503) |
|
Immediately | $ 11.29 | ||||
| 13 | WP2217294 | Gasket, Door (Replaces: 2217294) |
|
$ 285.98 | |||||
| 14 | W10486561 | Stop, Bottom Door (black) |
|
- | |||||
| 14 | W10486559 | Stop, Top Door (black) |
|
$ 34.53 | |||||
| 15 | WP2208493B | Handle, Door (black) (Replaces: 2208493B) |
|
$ 152.06 | |||||
| 16 | W10476703 | Hinge, Top (black) |
|
$ 40.54 | |||||
| 17 | W10544727 | Shim, Top Hinge |
|
- | |||||
| 17 | W10544734 | Shim, Bottom Hinge |
|
- | |||||
| 18 | WPW10136199 | Cover Unit (Replaces: W10136199) |
|
$ 108.85 | |||||
| 19 | W11788665 | Screw (black) (Replaces: 8534075) |
|
$ 12.77 | |||||
| 20 | W10501849 | Filler, Bottom Endcap (black) |
|
- | |||||
| 20 | W10501833 | Filler, Top Endcap (black) |
|
- | |||||
| 21 | W10532250 | Pad-foam, |
|
- | |||||
| 22 | 3400240 | Nut |
|
- | |||||
| 23 | W10825876 | Tube, Bin To Pump (Replaces: W10493860) |
|
$ 74.89 | |||||
| 24 | W11420408 | Scoop (Replaces: W10493422) |
|
$ 28.61 | |||||
| 25 | 8534081 | Screw (stainless) |
|
$ 7.81 | |||||
| 26 | WPW10170766 | Badge (maytag) (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 27 | N/P | Cabinet & Liner (not Serviced) |
|
- | |||||
| 28 | W10476696 | Hinge, Bottom (black) |
|
$ 40.64 | |||||
| 29 | 2185712 | Pin, Hinge |
|
$ 49.37 | |||||
| 30 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 31 | W10531302 | Screw (black) |
|
- | |||||
| 32 | 348689 | Screw |
|
$ 78.07 | |||||
| 33 | W10495264 | Screw (black) |
|
$ 10.80 | |||||
| 34 | 2185927 | Holder, Scoop |
|
$ 89.07 | |||||
| 35 | 8193716 | Leg, Leveling (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 36 | WP2208367 | Clamp, Half (Replaces: 2208367) |
|
$ 73.20 | |||||
| 37 | W10320117 | Panel, Top (black) |
|
- | |||||
| 38 | W11624957 | Gasket, Top Panel (Replaces: 2217293) |
|
- | |||||
| 39 | WP2185571B | Grill, Front (black) (Replaces: 2185571B) |
|
$ 241.63 | |||||
| 40 | WPW10217906 | Tube, Air Vent (Replaces: W10217906) |
|
$ 125.83 |
