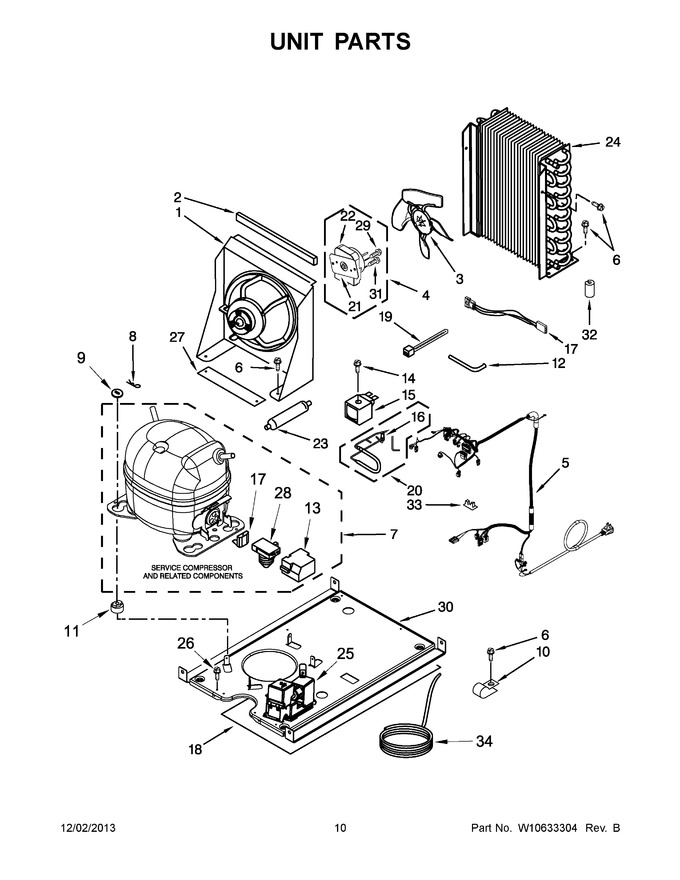

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 4 | W10124096 | Assembly, Motor & Mounting Plate (Replaces: 2315558) |
|
Immediately | $ 112.20 | ||||
| 5 | W11123917 | Assembly, Cab Wire (Replaces: W10460856) |
|
$ 207.12 | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | W11735041 | Compressor (Replaces: W10482479) |
|
$ 675.23 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 9.25 | |||||
| 10 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 11 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 38.79 | |||||
| 13 | WP2162358 | Cover, Terminal (Replaces: W10364944) |
|
$ 95.29 | |||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 326.37 | |||||
| 17 | W11106270 | Protector, Overload (Replaces: W10520264) |
|
$ 121.71 | |||||
| 18 | W10282061 | Shield, Heat |
|
- | |||||
| 19 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 20 | W11748341 | Valve, Hot Gas (Replaces: W10534030) |
|
Immediately | $ 101.88 | ||||
| 21 | 2301979 | Mounting Plate, Condenser Fan Motor |
|
$ 94.77 | |||||
| 22 | W10124096 | Motor, Fan (Replaces: W10509333) |
|
Immediately | $ 112.20 | ||||
| 23 | W10843121 | Drier (production) (Replaces: W10200037) |
|
Immediately | $ 57.13 | ||||
| 24 | WP2313624 | Condenser (Replaces: 2313624) |
|
$ 366.37 | |||||
| 25 | W11539855 | Pump Assembly-drain (Replaces: W10122062) |
|
Immediately | $ 629.75 | ||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | 2217397 | Pad, Foam |
|
- | |||||
| 28 | W11098401 | Relay, Starting (Replaces: W10482495) |
|
$ 108.18 | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | 2217445 | Base, Unit |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 32 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 33 | 1115375 | Clip-wiring |
|
$ 11.15 | |||||
| 34 | W11766555 | Assembly, Drain Hose (Replaces: W10217945) |
|
Immediately | $ 87.89 | ||||
| NI | N/P | Refrigerant Charge 7.25 Oz. (r-134a) |
|
- |
