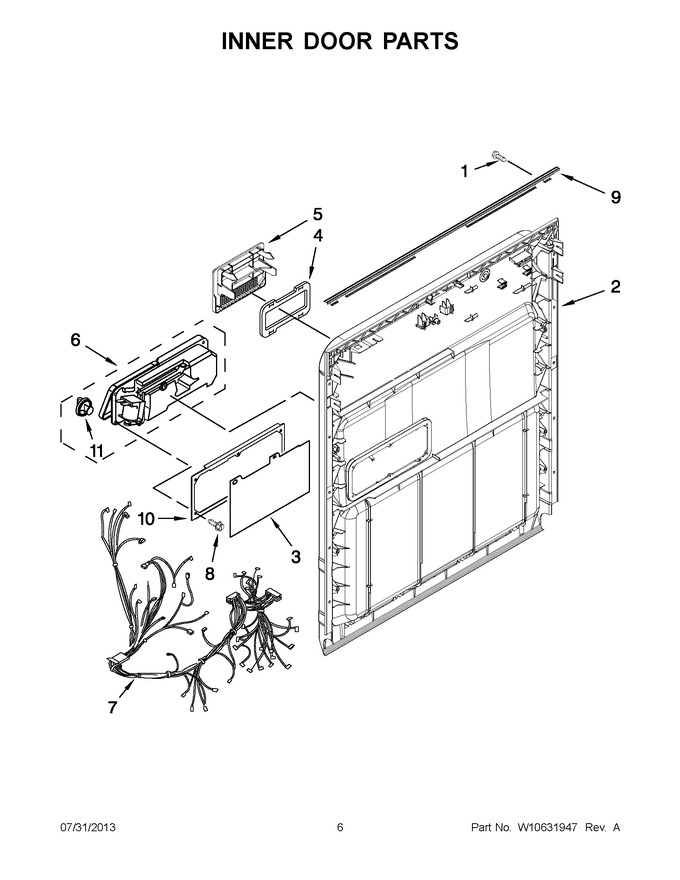

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw (Replaces: W10348413) |
|
Immediately | $ 8.03 | ||||
| 2 | WPW10254547 | Inner Door Assembly (also Order Item 4) (Replaces: W10254547) |
|
$ 250.07 | |||||
| 3 | WPW10482094 | Cover, Dispenser (Replaces: W10482094) |
|
Immediately | $ 30.50 | ||||
| 4 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 11.61 | |||||
| 5 | WPW10254548 | Deflector, Vent (also Order Item 4) (Replaces: W10254548) |
|
$ 69.66 | |||||
| 6 | WPW10224430 | Dispenser, Assembly (Replaces: W10195411) |
|
Immediately | $ 204.79 | ||||
| 7 | W10537905 | Wiring Harness (Replaces: W10496083) |
|
$ 240.28 | |||||
| 8 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.64 | ||||
| 9 | WP8269296 | Seal, Door/console (Replaces: 8269296) |
|
Immediately | $ 179.21 | ||||
| 10 | WPW10462232 | Bracket, Dispenser (Replaces: W10462232) |
|
$ 36.04 | |||||
| 11 | WP8533380 | Cap, Rinse Aid (Replaces: 8533380) |
|
$ 26.58 |
