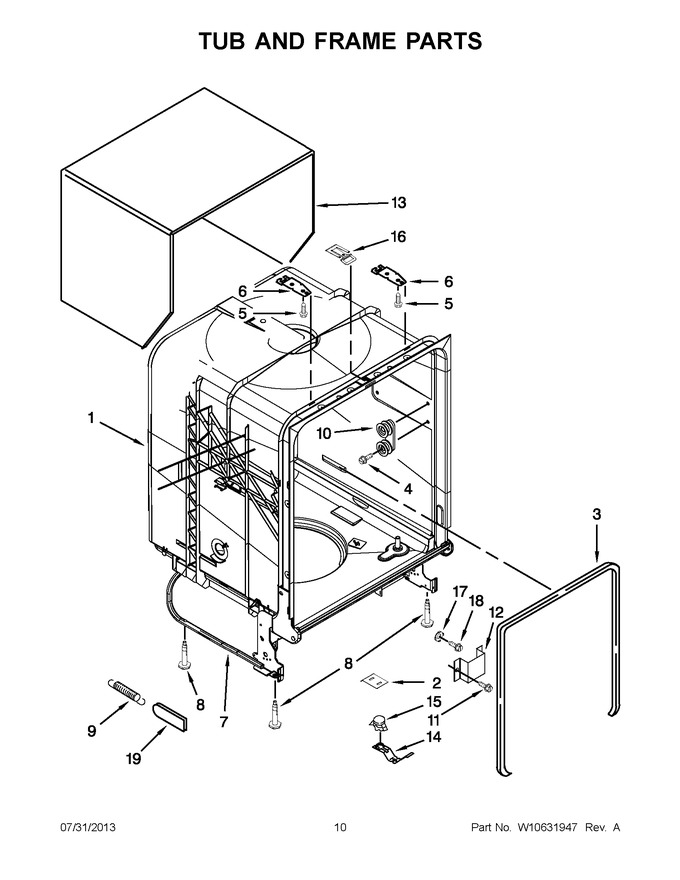

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10413848 | Tub Assembly (includes Heater Assembly (Replaces: W10349288) |
|
$ 501.73 | |||||
| 2 | W10321574 | Shield, Thermostat (Replaces: W10339699) |
|
$ 24.60 | |||||
| 3 | W11768590 | Seal, Tub (Replaces: W10524469) |
|
Immediately | $ 31.19 | ||||
| 4 | W10817436 | Screw (Replaces: W10341745) |
|
Immediately | $ 7.74 | ||||
| 5 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 6 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 7 | W11680335 | Support, Bottom (Replaces: W10304231) |
|
$ 80.31 | |||||
| 8 | 8193716 | Leveler, Leg (Replaces: W10304228) |
|
Immediately | $ 84.72 | ||||
| 9 | WPW10337934 | Spring, Door Balance (Replaces: W10337934) |
|
Immediately | $ 34.61 | ||||
| 10 | WP8270016 | Wheel And Mount Assembly (Replaces: 8270016) |
|
$ 84.61 | |||||
| 11 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 12 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.79 | |||||
| 13 | W10896113 | Shield, Tub Sound (Replaces: W10380479) |
|
Immediately | $ 63.88 | ||||
| 14 | W10539489 | Clip, Thermostat |
|
$ 19.18 | |||||
| 15 | WP661566 | Thermostat (Replaces: W10339474) |
|
Immediately | $ 31.28 | ||||
| 16 | WP8580309 | Strike, Latch (Replaces: 8580309) |
|
Immediately | $ 44.69 | ||||
| 17 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 9.03 | |||||
| 18 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.75 | |||||
| 19 | WP8268990 | Bushing, Door Spring (Replaces: 8268990) |
|
Immediately | $ 30.52 |
