01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Motor And Ice Container Parts


10 - Icemaker Parts


11 - Optional Parts (not Included)

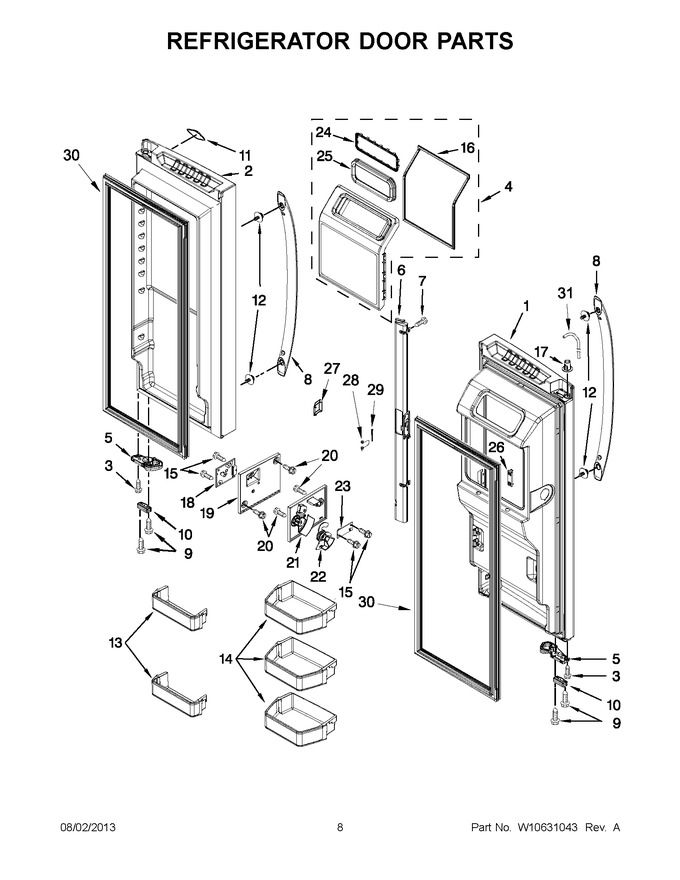

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10561913		Door, Left (white)   (Replaces: W10561913)		Appelez-nous	-
1	LW10561911		Door, Left (stainless)   (Replaces: W10561911)				$ 1,705.37
1	LW10561914		Door, Left (black)   (Replaces: W10561914)				$ 1,253.88
2	LW10341282		Door, Right (black)   (Replaces: W10341282)				$ 1,142.49
2	LW10340316		Door, Right (white)   (Replaces: W10340316)				$ 1,187.46
2	LW10341284		Door, Right (stainless)   (Replaces: W10341284)				$ 1,164.94
3	WPW10464016		Screw   (Replaces: W10464016)				$ 12.32
4	WPW10549590		Door-ice   (Replaces: W10492470)				$ 351.56
5	WPW10372267		Latch, Door (right Hand)   (Replaces: W10372267)				$ 13.31
5	W10857643		Latch, Door (left Hand)   (Replaces: W10355634)				$ 83.58
6	W10846151		Mullion, Door (white)   (Replaces: W10407252)				$ 133.95
6	W10698196		Mullion, Door (black)   (Replaces: W10407253)				$ 138.15
6	W10806457		Mullion, Door (grey)   (Replaces: W10407254)			Immediately	$ 270.14
7	W11311945		Screw   (Replaces: 12990204)				$ 14.02
8	WPW10557401		Handle, Door (brushed Aluminum)   (Replaces: W10557401)				$ 303.14
8	W10557402		Handle, Door (white)		Appelez-nous	-
8	W10557403		Handle, Door (black)				$ 254.45
9	WP98165		Screw   (Replaces: 12990504)				$ 8.00
10	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.22
11	WPW10427988		Nameplate (grey)   (Replaces: W10427988)				$ 71.47
11	W10401881		Nameplate (white)		Appelez-nous	-
11	W10427986		Nameplate (black)		Appelez-nous	-
12	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.85
13	W10539117		Trivet, 2 Liter				$ 32.19
14	W10467435		Bucket, Gallon		Appelez-nous	-
15	2006254		Screw   (Replaces: 489214)				$ 13.13
16	W11624997		Gasket, Ice Door   (Replaces: W10347085)				$ 66.10
17	W10562834		Clip-tube   (Replaces: W10245516)				$ 14.91
18	W11813704		Circuit Board, Receiver   (Replaces: W10518658)			Immediately	$ 313.30
19	W11763407		Cover, Receiver   (Replaces: W10258510)				$ 42.38
20	WP3400065		Screw (stainless)   (Replaces: 3400065)			Immediately	$ 7.74
21	W10258502		Cover, Emitter				$ 85.47
22	W10258540		Slide, Icemaker Shut Off				$ 10.62
23	W10870822		Circuit Board, Emitter   (Replaces: W10518659)			Immediately	$ 222.54
24	WPW10400825		Retainer,ice Chute   (Replaces: W10400825)				$ 30.78
25	WPW10347087		Gasket, Ice Chute   (Replaces: W10347087)				$ 46.64
26	W10347053		Vent, Thermistor		Appelez-nous	-
27	WPW10258520		Door, Emitter   (Replaces: W10258520)				$ 75.86
28	WP2198635		Spring, Door   (Replaces: 2198635)				$ 87.08
29	WP2198634		Pin, Door   (Replaces: 2198634)				$ 17.76
30	W10407212		Gasket, Door (grey)   (Replaces: W10407146)			Immediately	$ 254.40
30	W10861004		Gasket, Door (black)   (Replaces: W10407145)				$ 315.40
30	W11678967		Gasket, Door (white)   (Replaces: W10249089)				$ 229.41
31	W10394073		Tube, Water				$ 120.24
